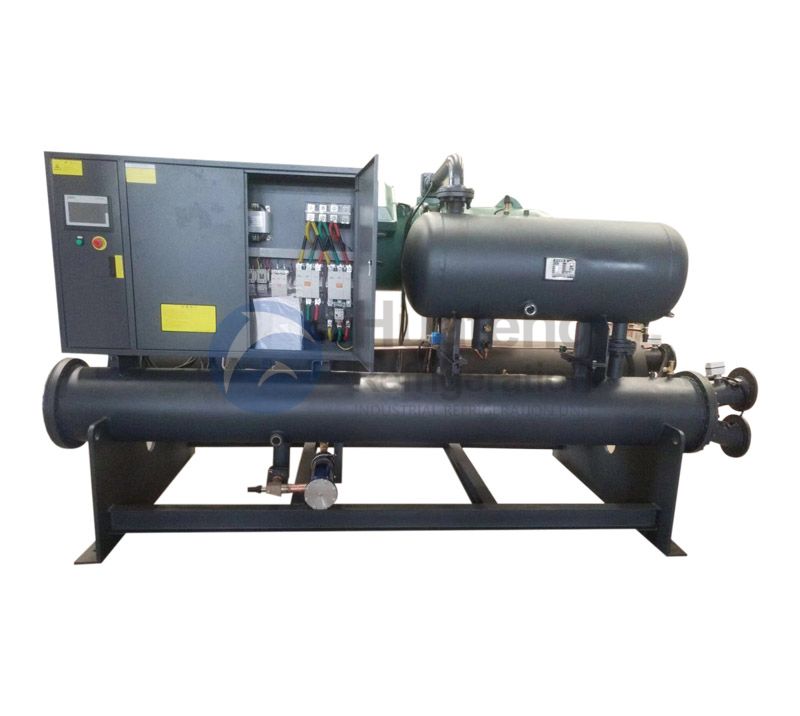

custom Flooded Type Screw Type Chiller

custom Flooded Type Screw Type Chiller,Flooded Type Screw Type Chiller exporter

Description:

The series water chiller adopts efficient semi-closed screw compressor. the compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the refrigeration efficiency, and the unit is equipped with multiple protections to make the unit operate safely and reliably. Min.outlet temperature can be -60℃.

Jiangsu Huazhao Refrigeration Equipment CO., Ltd. is a manufacturing enterprise focus on high quality industrial refrigeration equipment research and development, production and sales.

Our company various industrial chiller with competitive price include: Air cooled chiller; Water cooled chiller; Low temperature glycol/brine water cooled chiller; Heat pump hot water chiller; Maglev inverter centrifugal water chiller; Oxidation dedicated water cooled chiller.

Features of chiller:

1. The unit adopts a semi-closed screw compressor. The compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient.

2. The unit heat exchanger adopts high-efficiency heat exchange tube to improve the cooling efficiency. At the same time, in order to reduce the lubricating oil entering the heat exchanger, the unit increases the secondary oil content, minimizes the amount of oil entering the heat exchanger, and passes the specially designed ejector. The oil return device directs the lubricating oil in the heat exchanger back to the compressor to improve the refrigeration efficiency of the unit and also improve the reliability of the unit operation.

3. The unit is equipped with multiple protections to make the unit operate safely and reliably. The unit adopts direct cooling mode, which reduces the loss caused by the intermediate heat exchange and greatly reduces the running cost.

4. Environmentally friendly 134a refrigerant is used to improve unit operating efficiency. The unit is equipped with multiple protections to make the unit safe and reliable.

Flooded type water cooled screw refrigeration unit (Environmental protection)

Model

HTK-M300M

HTK-M400M

HTK-M450M

HTK-M530M

HTK-M600M

HTK-M640M

HTK-M680M

HTK-M750M

HTK-M850M

HTK-M950M

Cooling

300

396

453

530

600

640

678

750

848

947

Capacity

Kcal/Hr

258000

340560

389580

455800

516000

550400

583080

645000

729280

814420

85.3

112.6

128.8

150.7

170.6

181.97

192.78

213.25

241.11

269.26

Power

50HZ

3P-380V-50HZ

Input power(KW)

55.8

67.8

78.3

103

109.7

116.2

128.7

145.4

162.3

EER

COP

5.38

5.84

5.79

5.82

5.83

Freezing medium

R134a

control mode

Electronic expansion valve

Comprosser

Mode

Semi-closed double screw

Working style

Y-Δ/Δ-Δ

Capacity

0-25%-50%-75%-100%

Condensor

Mode

Efficient external thread shell and tube type

Cooling water

In 30℃/Out 35℃

tempreture

Water discharge (m3/h)

64.5

85.1

97.4

114

129

137.6

145.8

161.3

182.3

203.6

Pressure loss (Kpa)

waterpipe

DN100

DN125

DN150

DN200

Evaporater

mode

Efficient finned tube filled with liquid

Cooling water

In 12℃/Out 7℃

tempreture

Water discharge (m3/h)

51.6

68.1

77.9

91.2

103.2

110.1

116.6

129

145.9

162.9

Pressure loss (Kpa)

waterpipe

DN100

DN125

DN150

DN200

Safeguard

High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection;

high pressure safety valve protection; oil pressure protection; exhaust over heat protection

Units Weight

1320

1480

2130

2560

3100

3500

3800

3850

4070

4150

Size

L(mm)

3600

3800

4000

W(mm)

1460

1560

1640

1760

H(mm)

1520

1630

1650

1800

1860

1910

Noise(dB)

Note:

1. Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃, evaporation temperature machine5℃.

2. We can make order according to your requirement.

3. Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
