DA-2(A3)Five Function Weighing System Medical Electric Adjustable Bed

DA-2(A3)Five Function Weighing System Medical Electric Adjustable Bed

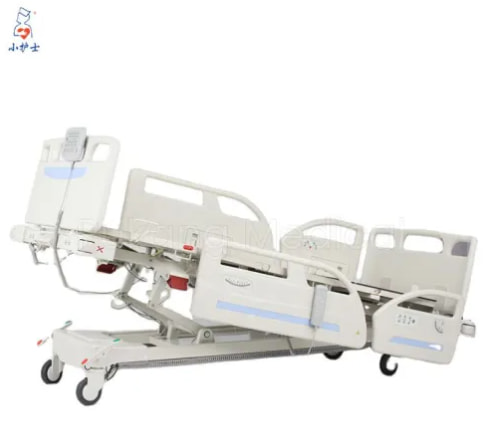

Product Name: Type A3 Five Function Weighing System Medical Electric Adjustable Bed

Technical Features:



Outer dimensions (Side rails up)

L2215*W1035mm(±10mm)

Bed height

H455-785mm(±10mm)

Maximum backrest

0-70°

Maximum knee rest

0-25°

TR/ATR

0-12°

Safe working load

240kg



Electric Parameters:



Power supply

100-240V, 50HZ / 60Hz

Maximum input

840VA

Protection against water and dust

IP54

Equipment classification

Class II

Level of protection against injury from electrical current

Applied part type BF

Electric motor operation mode (load factor)

10%, max2min/18min

Certificates:

Products are manufactured according to European norms for medical technology and hospital beds EN 60601-1, EN60601-1-2 , EN ISO 14971, 93/42/EEC, 90/384/EEC EN60601-2-52:2009

Standard Configuration

1. Split Side Rails: The 4pcs PP side rails provide the patient with protection against falls.

2. Removable Mattress Platform: Easy removable and easy for sterilization. The mattress

3.H/F Boards Locks: The bed board locks prevent accidental removal of the bed boards when steering or handling the bed.

4. Protective corner bumpers

5. Lifting pole or infusion stand holes

6. Mattress holders

7. Angle Indicator: The angle gauges of side rails in the head and foot direction show the angles of the backrest and the tilt of the whole bed mattress platform respectively.

8. Extension of the bed: The integrated bed extension adjusts the mattress platform length to the individual patient’s height.

9. Four 125mm castors with central locking system

10. Manual CPR: The electric CPR is equipped with damping device, which can let the back rest fall down slowly to ensure the safety of the patient when the power is off, the whole process can be single hand operation.

11. Integrated Scales system: The in-bed scales control panel located under the foot end is protected against impacts.
