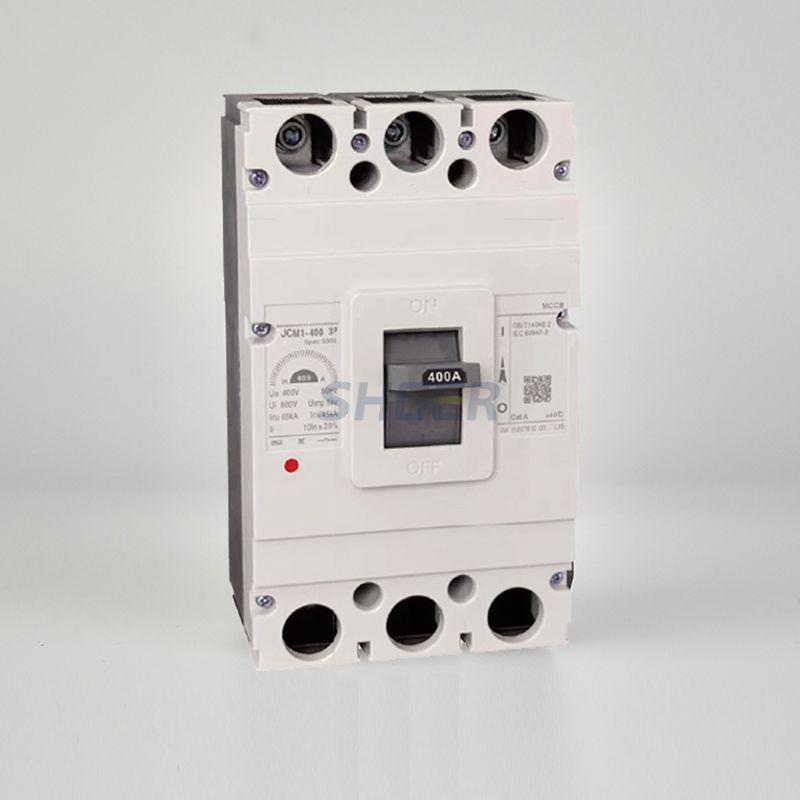

Mold Case Circuit Breaker
The JCM1 Series circut breaker is a product of innovation leveraging international technology.Compatible with 50Hz or 60Hz AC systems, it boasts a rated insulation voltage of 800V (500V for JCM-63) and supports operating voltages up to 690V (JCM1-100: 400V-690V) with a rated current of 800A. Primarily designed for distribution network circuits, it safeguards against overload, short circuits, undervoltage, and serves as protection for infrequent motor starts. Its compact design, high breaking capacity, minimal arc flash, and anti-vibration features make it ideal for both land and marine applications. Compliant with GB 14048.2 and IEC 60947-2 standards and CCC certified.
Technical Parameters
Model
Frame Class Rated Current(A)
Rated Current(A)
Rated Working Voltage
Rated Voltage(V)
Rated Ultimate Short-circuit Breaking Capacity(kA)
Rated Operating Short-circuit Breaking Capacity(kA)
Fight Distance(mm)
400V
690V
400V
690V
JCM1-63L
63
6,10,16,20,25,32,40,50,63
400
500
25
/
22
/
≤50
JCM1-63M
50
/
35
/
JCM1-63M/4
JCM1-100L
100
10,16,20,25,32,40,50,63,80,100
400/690
800
35
/
22
/
≤50
JCM1-100L/4
JCM1-100M
50
10
35
5
≤50
JCM1-100M/4
JCM1-125L
10,16,20,25,32,40,50,63,80,100,125
400/690
800
35
/
22
/
≤50
JCM1-125L/4
JCM1-125M
50
10
35
5
≤50
JCM1-125M/4
JCM1-225L
250
100,125,160,180,200,225
400/690
800
35
/
25
/
≤50
JCM1-225M
50
10
35
5
≤50
JCM1-225M/4
JCM1-250L
100,125,160,180,200,225,250
400/690
800
35
/
25
/
≤50
JCM1-250M
50
10
35
5
≤50
JCM1-250M/4
JCM1-400L
400
225,250,315,350,400
400/690
800
50
10
25
5
≤50
JCM1-400L/4
JCM1-400M
65
10
42
5
≤50
JCM1-400M/4
JCM1-630L
630
400,500,630
400/690
800
50
/
35
/
≤100
JCM1-630M
65
10
42
5
≤100
JCM1-630M/4
JCM1-800M
800
630,700,800
400/690
800
65
10
42
5
≤100
JCM1-1250M
1250
800,1000,1250
400/690
800
65
25
42
12.5
≤100
