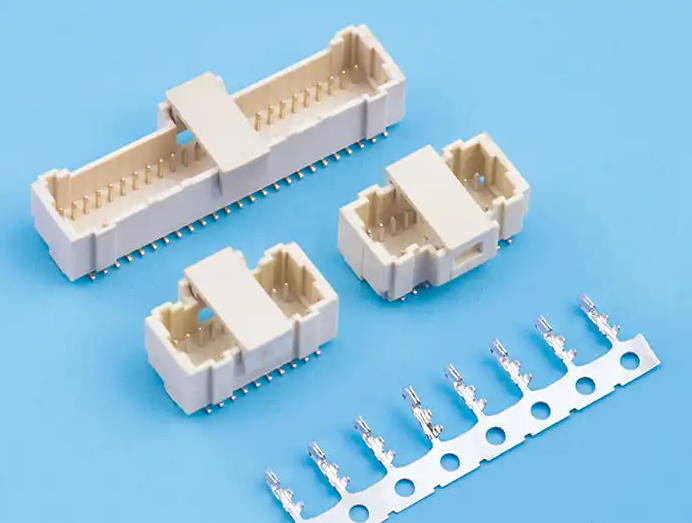

1.0-B Type Double Row 3 generation
1、CKT: 2*10Pin to 2*25Pin
2、Current rating: 1A AC/DC
3、Voltage rating(max): 50V, AC/DC
4、Working Temperature: -25°C~+85°C,
(Including temperature rise in applying electrical current)
5、Contact resistance: Initial value S20mΩ
After environmental testing≤40mΩ
6、Insulation resistance: 2100MΩ
7、Withstand voltage: 500VAC(rms)
8、Applicable PCB board thickness: 1 .6mm to 2.0mm
