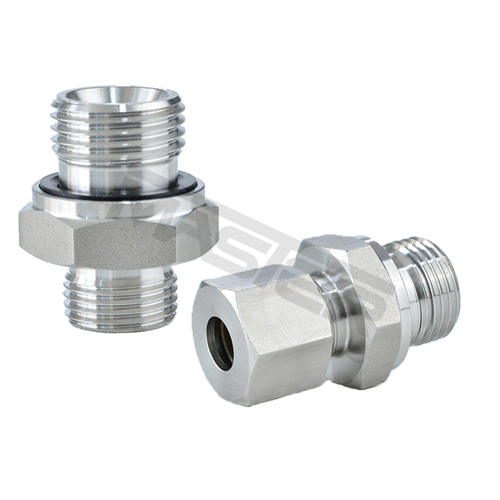

1CM/1DM Metric BSP Adapter
The 1CM/1DM-RN metric to BSP adapter is a male fitting featuring a male 24-degree cone metric thread on one end and a 60-degree cone BSP thread on the other. These adapters are available in various sizes and materials to accommodate different pipe dimensions and specific application requirements.
Product Parameter
NOTE
PART NO.
THREAD
TUBE O.D
DIMENSIONS
T1
T2
D1
L1
L2
L3
L4
S1
S2
L
1CM-12-10
M12X1.5
M10X1
6
23.5
8.5
8
23
14
14
1CM-14-12
M14X1.5
M12X1.5
8
29
10
10
25
17
17
1CM-14-18
M14X1.5
M18X1.5
8
30.5
11.5
12
26
24
17
1CM-16-14
M16X1.5
M14X1.5
10
30
11
11
26
19
19
1CM-16
M16X1.5
M16X1.5
10
31.5
12.5
12
24
22
19
1CM-16-18
M16X1.5
M18X1.5
10
31.5
12.5
12
27
24
19
1CM-16-22
M16X1.5
M22X1.5
10
35
14
14
29
27
19
1CM-18-14
M18X1.5
M14X1.5
12
30
11
11
26
19
22
1CM-18-16
M18X1.5
M16X1.5
12
31.5
12.5
12
27
22
22
1CM-18
M18X1.5
M18X1.5
12
31.5
12.5
12
27
24
22
1CM-18-22
M18X1.5
M22X1.5
12
35
14
14
29
27
22
1CM-22-16
M22X1.5
M16X1.5
15
32
13
12
28
24
27
1CM-22-18
M22X1.5
M18X1.5
15
32.5
13.5
12
29
24
27
1CM-22
M22X1.5
M22X1.5
15
36
15
14
30
27
27
1CM-26-18
M26X1.5
M18X1.5
18
33.5
14
12
30
27
32
1CM-26-22
M26X1.5
M22X1.5
18
36
14.5
14
31
27
32
1CM-30-22
M30X2
M22X1.5
22
38
16.5
14
33
32
36
1CM-30-26
M30X2
M26X1.5
22
40
16.5
16
33
32
36
1CM-30-27
M30X2
M27X2
22
42
18.5
16
35
32
36
1CM-36-33
M36X2
M33X2
28
43
17.5
18
34
41
41
1CM-45-42
M45X2
M42X2
35
48
17.5
20
39
50
50
1CM-52-48
M52X2
M48X2
42
52
19
22
42
55
60
Looking for a trusted BSP to metric adapter manufacturer with international service experience and full production capabilities? Contact MASTER now to request a catalog, samples, or custom quote. Our team will help you select or design the right adapter for your system.
