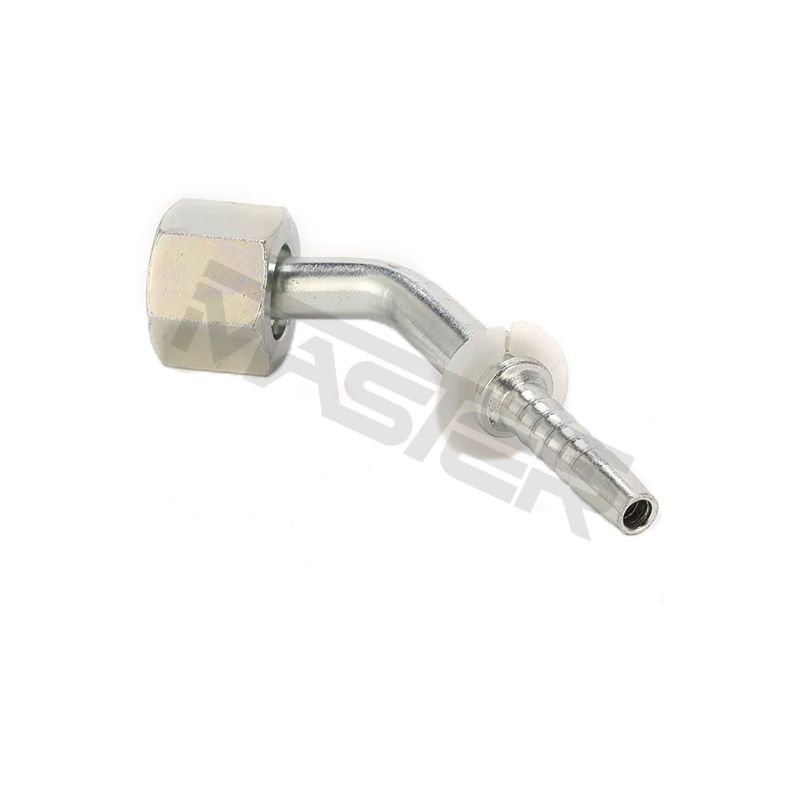

20141 Female 45° Multiseal Hose Fitting
The 20141/20141-T 45-degree metric multiseal hose fitting is equipped with multiple types of seals that offer a reliable barrier to prevent leaks. These female multiseal fittings are designed to securely connect hydraulic hoses to fluid systems using a socket that incorporates several sealing elements.
Product Parameter
PART NO.
THREAD E
HOSE BORE
DIMENSIONS
DN
DASH
A
C
H
S2
20141-10-03
M10*1
5
3
41.1
2.5
20.7
14
20141-10-04
M10*1
6
4
43.2
2.5
21.5
14
20141-12-03
M12*1.5
5
3
40.9
4
21.2
17
20141-12-04
M12*1.5
6
4
43
4
22
17
20141-14-04
M14*1.5
6
4
43.4
4.5
21.3
19
20141-14-05
M14*1.5
8
5
45.5
4.5
22.2
19
20141-16-04
M16*1.5
6
4
43.7
4.5
21.4
22
20141-16-05
M16*1.5
8
5
45.8
4.5
22.5
22
20141-16-06
M16*1.5
10
6
47.4
4.5
24.1
22
20141-18-05T
M18*1.5
8
5
46.8
4
22.6
24
20141-18-06
M18*1.5
10
6
48.5
4
24.2
24
20141-18-08
M18*1.5
12
8
52.2
4
25.7
24
20141-20-06T
M20*1.5
10
6
48.2
5.5
23.9
27
20141-20-08
M20*1.5
12
8
62.1
5.5
27.2
27
20141-22-06T
M22*1.5
10
6
58.4
5
25.7
27
20141-22-08
M22*1.5
12
8
62.1
5
27.2
27
20141-24-08T
M24*1.5
12
8
61.1
5.5
26.1
30
MASTER is a professional manufacturer and supplier of Multiseal Metric Fittings in China. With over 30 years of experience in metric hydraulic fitting production, we deliver high-quality metric fittings designed for reliable sealing and easy installation in hydraulic systems worldwide.
