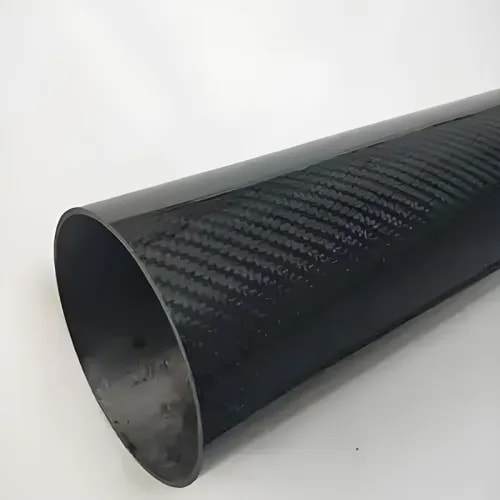

3K T300 Carbon Fiber Tube
● Material: 3K braided T300 carbon fiber + epoxy resin (Other resins can be customized, such as high-temperature resistant and flame-retardant types).
● Appearance: Classic black twill weave (3K means each bundle contains 3000 carbon filaments, and the surface can be matte or glossy).
● Process: Rolling/winding forming, smooth inner wall and clear outer wall texture.
Core advantage
● Ultra LIGHT and high strength: weighs only 1/4 of steel, and is much stronger than aluminum.
● Resistant to corrosion: resistant to acids and alkalis, moisture-proof, suitable for harsh environments such as Marine and chemical.
● Low thermal deformation: Extremely low coefficient of thermal expansion, ideal material for precision instruments.
● Strong customizability: supports different diameters, wall thicknesses, resins and surface treatments.
Technical Parameters
Items
Values
Fiber Type
T300 (High-strength standard modulus carbon fiber)
Weave Method
3K twill (customizable plain weave or UD unidirectional)
Resin
Epoxy resin (customizable)
Density
1.50-1.60 g/cm³
Tensile Strength
≥3,500 MPa
Tensile Modulous
230-250 GPa
Thickness
0.5mm-10mm (customizable)
OD
5mm to 150mm (customizable)
Standard Length
1m/2m (Customizable)
Operating temperature
“-50℃ ~ +150℃” (High-temperature resin can reach 200℃)
Typical Applications
● Aerospace: satellite mounts, model aircraft skeletons, UAV arms.
● Industrial machinery: Connecting rods of mechanical arms, shafts of automated equipment.
● Sports equipment: bicycle frame, fishing rod, golf club.
● Automobile modification: lightweight drive shafts, roll cage support tubes.
● Electronic equipment: antenna poles, optical instrument brackets.
Processing and Installation
● Processability
Supports cutting, drilling and tapping (low-speed processing is recommended to avoid delamination).
The end can be pre-embedded with metal inserts (to enhance the connection strength).
● Connection method
Adhesive bonding (epoxy structural adhesive).
Metal flange butt joint (customized interface required).
