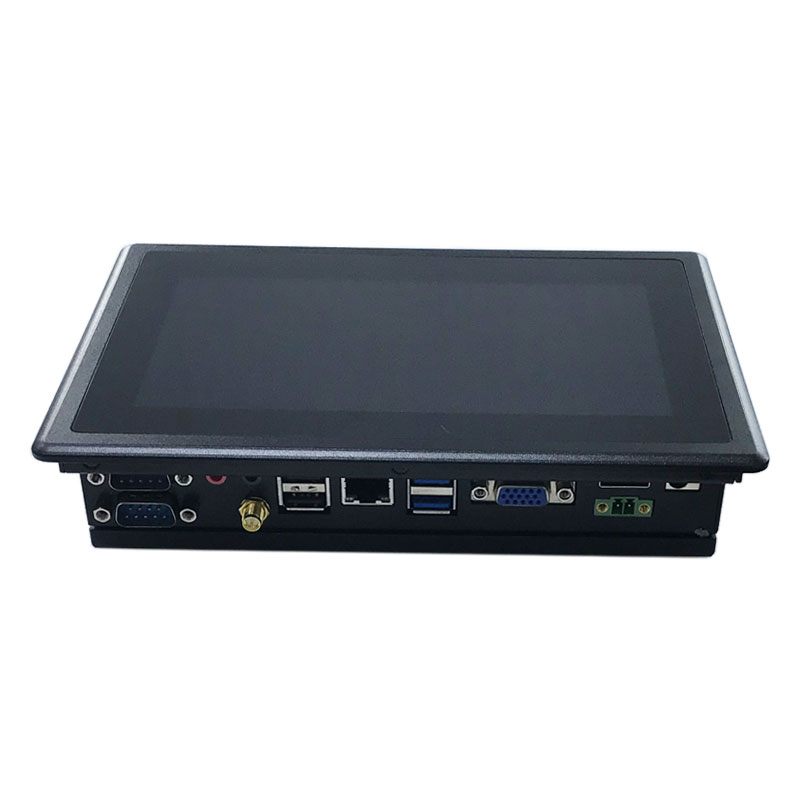

7 Inch Embedded Panel Pc With 2 Power Interface
7 Inch Embedded Panel Pc With 2 Power Interface
FEATURES:
1. Front bezel aluminum alloy brushed metal craft, seamless design, front panel IP65 waterproof.
2. Industrial LCD panel, wide operating temperaturer: -20 ~ 70 °C, wide viewing angle, high nits, true color.
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response.
4. Cover with AG glass, Anti-glare.
5. EETI touch controller.
6. High performance motherboard, 7×24 continuous operation.
7. Ultra-thin front bezel 3mm, ideal for embedded mounting.
https://www.sihovision.com/industrial-touch-panel-pc/
SPECIFICATION:
PC
CPU
Intel® Celeron J1900, quad core, 2.0GHz, fanless
Chipset
Intel ValleyView SSA-CUnit
Memory
2G DDR3 (4G, 8G optional)
Hard Drive Capacity
64G SSD
Hard Drive Optional
SSD: 32G, 128GB, 256GB
HDD: 500GB, 1TB
Graphics
CPU Integrated graphics HD Graphics and support 1080p HD photo quality
Audio
Realtek ALC662, High Definition Audio (HD), Line in, Line out
Network
1×Realtek RTL 8111E Gigabit Ethernet controller
Wireless Network
WIFI
I/O Interface
2×USB 2.0, 2×USB 3.0, 2 x COM RS232
1×VGA/HDMI/RJ45/Audio OUT/MIC IN/POWER DC
Operation System
Support Windows 7/8/10, Linux, Ubuntu, Debian etc.
LCD panel
Panel size
7″
Resolution
1024*600
Aspect ratio
16:9
Support Color
16.7M colors
Brightness (cd/m²)
1000 nits, sunlight readable
Response time
5ms
Contrast ratio
800:1
View angle
75°/75°/75°/75° (R/L/U/D)
Touch panel
Touchscreen Type
Project Capacitive Touch (10 points)
Touch Interface
USB (RS232 optional)
Touch response time
2ms
Luminousness
90%
Surface Hardness
7H
Working life
>50 million times
Touch options
(5 wire resistive touch, IR touch optional)
Power Supply
External Power Supply
AC 100 – 240V
Working voltage
DC 12V
Power consumption
≤45W
Enclosure
Material
Aluminum Alloy bezel+ High strength cold rolled steel back case
Color
Silver, Black, white, color can be customized
VESA mounting
75×75mm
IP grade
front panel IP65 waterproof
Operating Environment
Temperature Range
operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity
5%~95% @ 40° C, non-condensing
Vibration
5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net weight
1.5kg
Gross weight
2kg
Product Dimension
20.11*13.66*5.05cm
Packing size
40*33*16cm
Accessories
Power adapter, embedded screws, user manual, warranty card
Other
Mounting (options)
embedded mounting screws
wall mounting brackets (optional)
desk stand holder (optional)
Warranty
1 year warranty
