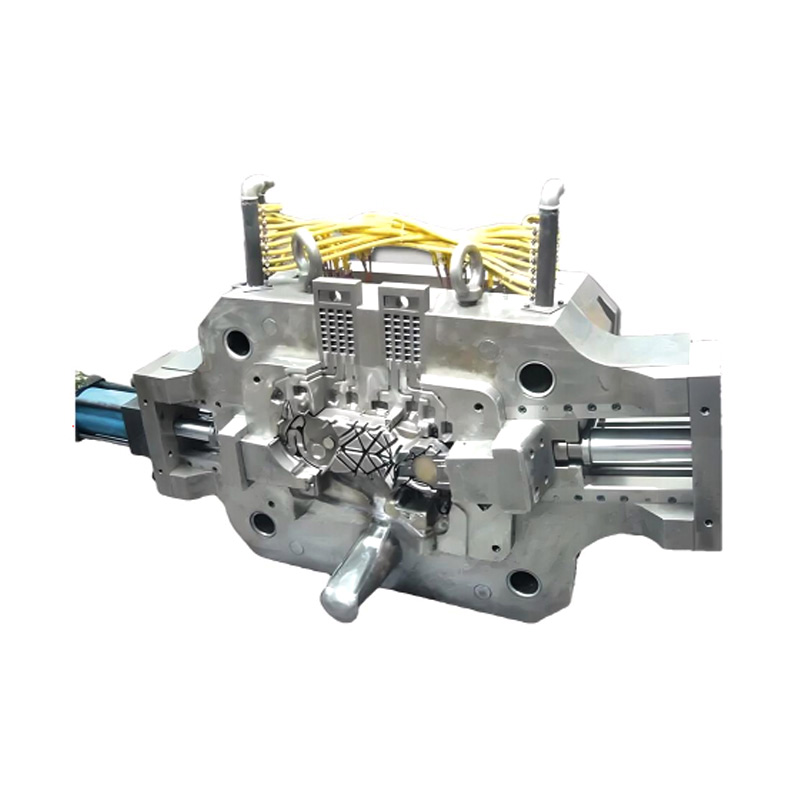

Aluminum Alloy Die Casting Mold: Precision Tooling for High-Volume Production

The aluminum alloy die casting mold is a precision-engineered tool used in the high-pressure die casting process to produce complex, dimensionally accurate aluminum components for automotive, aerospace, electronics, and industrial applications. These molds are essential for achieving consistent part quality, tight tolerances, and high production efficiency. They are engineered to withstand the extreme thermal and mechanical stresses of the die casting process, ensuring long service life and reliable performance. The mold’s advanced design allows for efficient heat dissipation, rapid cycle times, and reduced scrap rates, making it a key asset for cost-effective manufacturing.

The manufacturing of the aluminum alloy die casting mold begins with detailed design, where the mold’s cavity, core, cooling channels, and ejection systems are optimized for specific part geometry and production requirements. The mold is machined from high-grade tool steel, such as H13, which offers high thermal conductivity and resistance to thermal fatigue. Advanced machining techniques including CNC milling, electrical discharge machining (EDM), and wire cutting are used to achieve tight tolerances. The mold is then heat-treated to enhance hardness and durability, and the final surfaces are polished to ensure smooth ejection of cast parts.

Quality control at the aluminum alloy die casting mold factory includes dimensional inspection, hardness testing, and thermal cycling to verify the mold’s structural integrity and resistance to thermal fatigue. Each mold undergoes trial runs to validate performance and part quality. The mold is inspected for surface finish, gate design, and cooling efficiency.

Customization options include cavity configurations, cooling layouts, and surface treatments. The aluminum alloy die casting mold remains a cornerstone of high-volume manufacturing, enabling cost-effective production of complex aluminum components. By combining advanced engineering, quality materials, and rigorous testing, the aluminum alloy die casting mold delivers reliable and durable tooling that supports efficient production, reduces downtime, and ensures consistent part quality for demanding industrial applications. Its ability to maintain precision over millions of cycles makes it a vital investment for modern manufacturing.
