Automatic Pin Inspection Equipment
What is Automatic Pin Inspection Equipment?
Automatic Pin Inspection Equipment is a high-precision industrial inspection system designed to automatically detect, measure, and verify the quality, alignment, and dimensional accuracy of pins used in electronic components, connectors, semiconductor packages, and precision assemblies.
It uses advanced machine vision, optical imaging, and automated analysis algorithms to identify defects such as bent pins, missing pins, misalignment, contamination, deformation, or incorrect spacing.
This equipment is widely used in high-volume manufacturing industries where pin accuracy directly affects product performance and reliability.

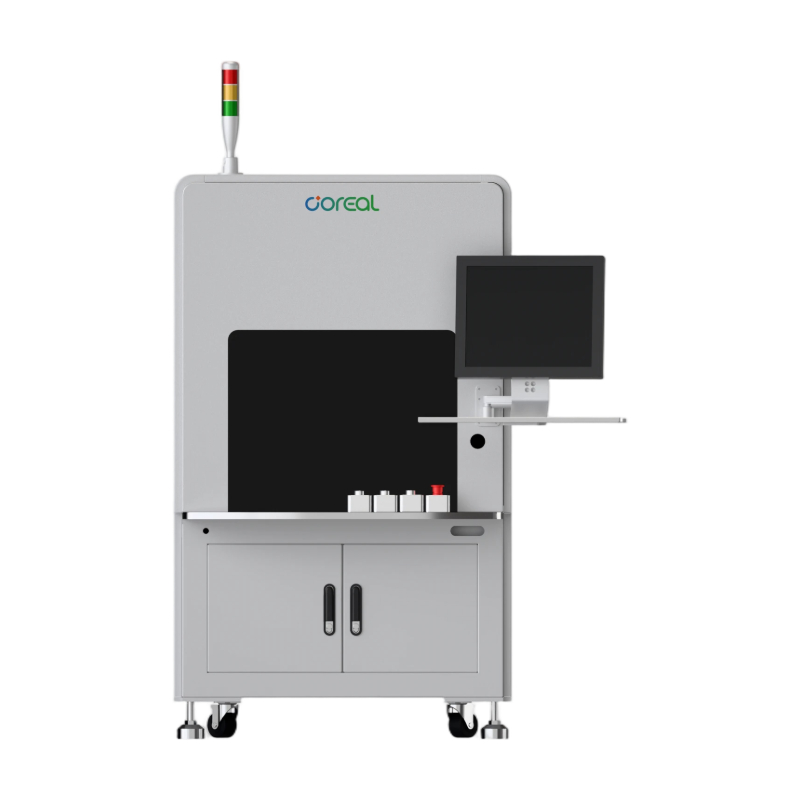

Utilizing precision robotic arms and handling mechanisms under the guidance of an ultrahighprecision 3D camera, this equipment inspects module pins for position, height, missing pins, and other parameters, and automatically sorts out qualified products.
Technical Specifications
Equipment Dimensions
1000 × 1200 × 1700 mm
Equipment Weight
1000 kg
Compatible Product Size
L: 20–70 mm, W: 20–70 mm
Positioning Accuracy
±5μm
Inspection Cycle Time
8S/C
How Automatic Pin Inspection Equipment Works
The inspection process typically includes:
Product feeding into inspection station
High-resolution image capture of pin structure
Multi-angle optical scanning and data acquisition
AI or algorithm-based defect analysis
Comparison with predefined tolerance standards
Automatic pass/fail sorting or rejection output
Data logging for quality traceability
We provide advanced automatic pin inspection equipment for semiconductor, electronics, and precision manufacturing industries. Custom configurations are available based on inspection accuracy, speed, and production line requirements.
If you are looking for more details, kindly visit our website.
