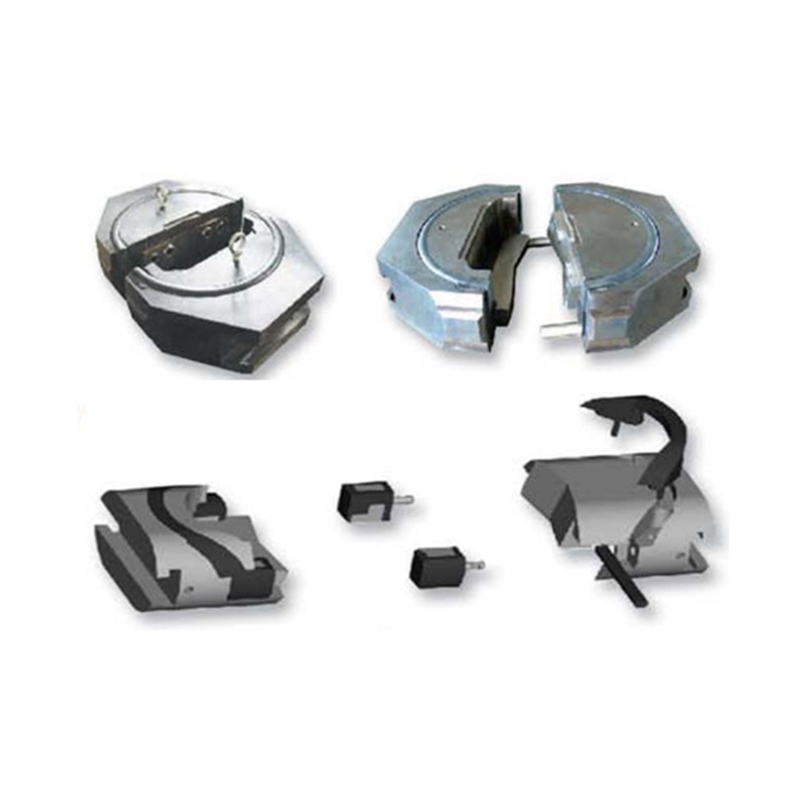

BOP Ram
The BOP Ram (Blowout Preventer Ram) is a crucial component used in the blowout prevention system during drilling operations. It features a shutoff valve that closes through the application of force or impact. The Ram BOP effectively seals the wellhead by coordinating with rams operated by hydraulic cylinders.
Product Description
A BOP Ram (Blowout Preventer Ram) is a critical component within a blowout prevention system used during oil and gas drilling operations. It plays a vital role in maintaining well control by sealing the wellbore, thereby preventing the uncontrolled release of formation fluids, also known as a blowout.
Structure and Working Principle
The BOP Ram operates through a hydraulic system that actuates a pair of gates (rams) to close off the wellbore. The closing action is driven by hydraulic cylinders, which force the rams together to either seal around the drill pipe or completely shut off the bore when the pipe is absent.
Main Components of BOP Ram Include:
Blowout Preventer Body: The primary pressure-bearing vessel subjected to wellbore pressure.
Hydraulic Opening and Closing Ports: Connect to hydraulic lines for operating the rams and facilitating maintenance.
Bonnet (Valve Cover): A part of the hydraulic system, which houses internal components and can be opened via a gate replacement piston.
Gate (Ram): The moving part that seals the wellbore. Available in various configurations.
Valve Cover Seal, Gate Guide Pin, Connecting Rod Seal: Ensure operational reliability and leak-free performance.
Locking Screw Housing: Includes the working piston, locking screw, and associated bolts, enabling secure positioning of components under pressure.
Intermediate Flange: Isolates the BOP hydraulic system from the wellbore and is designed to withstand wellbore pressure.
Plastic Packing Fitting and Lifting Lug: Aid in assembly, handling, and sealing integrity.
