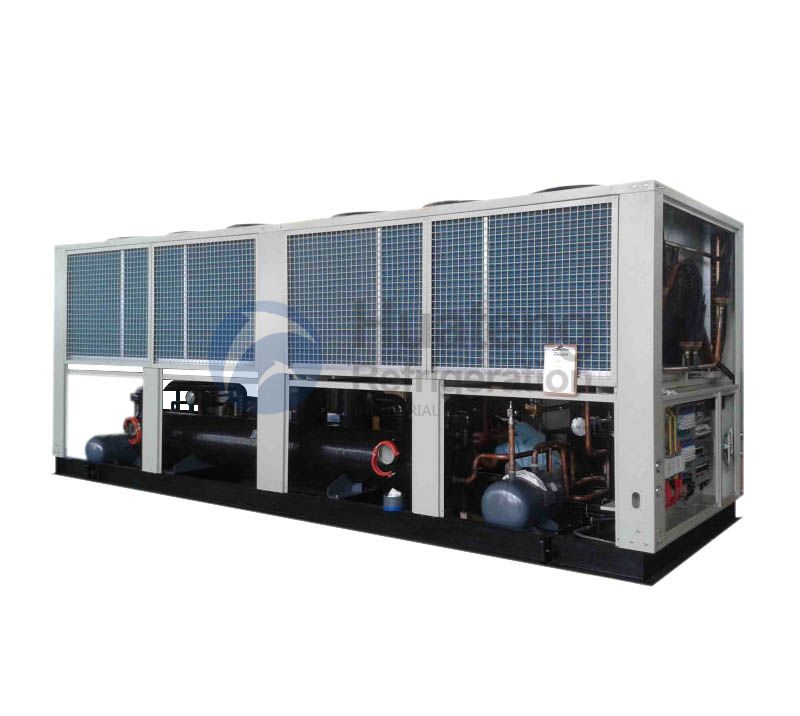

Commercial Air Cooled Screw Chiller

Commercial Air Cooled Screw Chiller,Tube type Air Cooled Screw Chiller,Air Cooled Screw Chiller supplier

Description:

The series air cooled screw type chiller cooling capacity from 85KW to 1550KW. This series units integrates the characteristics of many other products, using imported semi-closed screw compressors,supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. The user just need simply connect the pipeline of the water system and the required power supply,then can put into operation.

This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum. The manufacturing technology of this product is mature and stable and reliable.

Jiangsu Huazhao Refrigeration Equipment CO., Ltd. is a manufacturing enterprise focus on high quality industrial refrigeration equipment research and development, production and sales.

Our company various industrial chiller with competitive price include: Air cooled chiller; Water cooled chiller; Low temperature glycol/brine water cooled chiller; Heat pump hot water chiller; Maglev inverter centrifugal water chiller; Oxidation dedicated water cooled chiller.

Features of chiller:

1. Employing original double/single SCREW compressor, compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life

2. Employing all-new imported high class component

3. Employing two sets of compressor which can be used jointly or independent

4. Switch control, easy operation and maintenance

5. The weld of brass pipe is non-oxidization

6. Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003, operation safe

Safety system:

1 Compressor reverse protective

2 Freeze protector protective

3 Refrigerant safety valve

4 Buzzer

5 High-pressure gauge and Low-pressure gauge

6 Power phase failure protector

7 Coil over-heat protector

8 Temperature auto-switch

9 Refrigerant shortage protective

Air cooled screw chiller(Environmental Protection)

Model

HTK-M120F

HTK-M140F

HTK-M160F

HTK-M180F

HTK-M200F

HTK-M260F

HTK-M300F

HTK-M350F

Cooling

117

143

162

181

195

260

299

349

Capacity

Kcal/Hr

10620

122980

139320

155631

167700

223600

257140

300140

33.27

40.66

46.06

51.46

55.44

73.93

85.02

99.23

Power

50HZ

3P-380V-50HZ

Input power(KW)

37.2

51.5

57.3

64.1

68.8

86.2

99.6

115.7

EER

COP

3.15

2.78

2.83

2.82

2.83

3.02

Freezing medium

R134a

control mode

Thermal expansion valve

Comprosser

Mode

Semi-closed double screw

Working style

Y-Δ/Δ-Δ

Capacity

0-25%-50%-75%-100%

Condensor

Mode

Finned type

Cooling air tempreture

In 35℃/Out 45℃

Wind flow (m³/h)

60000

90000

120000

180000

Fan quantity

Motor power（KW)

0.85*4

0.85*6

0.85*8

0.85*12

Evaporater

mode

Efficient finned tube filled with liquid

Freeze water tempreture

In 12℃/Out 7℃

Freeze water flow (m³/h)

20.1

24.6

27.9

31.1

33.5

44.7

51.4

Pressure loss (Kpa)

waterpipe

DN80

DN100

Safeguard

High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection;

high pressure safety valve protection; oil pressure protection; exhaust over heat protection

Units Weight

2000

2500

2600

2700

3500

3600

4400

4600

Size

L(mm)

2080

3060

4040

6000

W(mm)

2200

H(mm)

2220

2260

Noise(dB)
