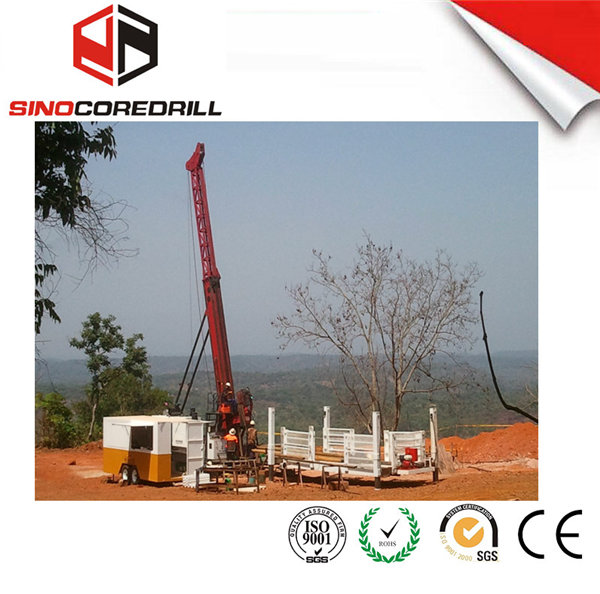

CR25 Surface Core Drilling Rig
CR25 Hydraulic Core Drilling Rig is reasonable in design, excellent in performance, easy for operation and convenient for maintenance.
CR25 can be applied to both slant and vertical drilling. Being a rig equipped with diamond and the carbide alloy bit drilling, it can be used in the fields of geology, metallurgy, coal mining, nuke industry and hydrology measuring.
The core drill rig of full hydraulic and rotator adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties in the world. It could be applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.
The drilling rig has reasonable layout, compact structure, superior performance, simple operation and convenient maintenance. It is the ideal coring drilling equipment.
Main Performance Parameters of CR-25 Surface Drill Rigs
Self contained operator panel with manually operated hydraulic control valves.
15 ton capacity mainline hoist
32 ton pullback with 6 m rod pull, direct-coupled feed cylinder with 3.7 m stroke
0-90 degree mast angle capability
Hydraulic Chuck with 294 kN holding capacity
Hydraulic powered rod clamp with BQ rod to HWT casing jaw sizes
PQ foot clamp, spring close / hydraulic open for failsafe operation
Individual cooling system, Centralized operation panel
Specification of Main Machine
Diesel Engine
Model
Cummins QSZ13-C400-II (EU Stage IIIA)
Displacement
13L
Power
298 kW (400HP)
Rated RPM
1900 rpm
Drilling Capacity
BQ
3100 m
NQ
2550 m
HQ
2050 m
PQ
1650 m
Drill Head
Rotation Motor
Two-speed Hydraulic Motor
Rexroth of Germany
RPM
Three Shifts
Stepless Change: 0-1250 RPM
Ratios
1st 8.2:1
2nd 4.2:1
3nd 1:1
Head Opener
sidewise sliding way with hydraulic drive
Hydraulic Chuck(PQ)
294000N
Hydraulically opened, Disc Spring Clamping, Normally C Closed Type
Axial Holding Capacity of 294000 N
Max. Torque
8750 N·m
Hold Diameter
121 mm
Max. Lifting capacity of Spindle
320 kN
Max. Feeding Power
140 kN
