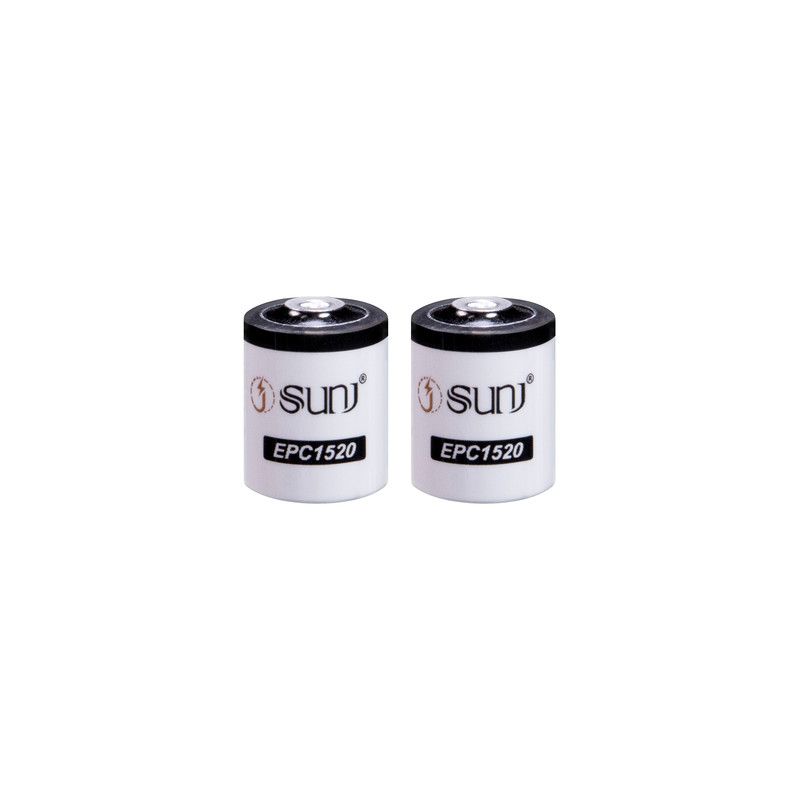

EPC1520 Super Pulse Composite Capacitance
Product Type
Super Pulse Composite Capacitance
Key Features
Instantaneous large current discharge
The leakage current is small
High pulse current
Wide operating temperature range
Long service life
Basic Parameters
Item
Subject
Requirement
Appearance
positive and negative electrodes are marked correctly, no mechanical damage, no obvious scratches, clear signs, clean terminals, no modification, no leakage
Dimension
max φ15.1*21.0mm
Weight
about 10.0g
Open-circuit voltage
≥3.64V
Internal resistance
≤200mΩ （RT@1kHz）
Rated capacitance
140As @3.67V
210As @3.90V
SUNJ ENERGY lithium ion capacitors have a unique design, designed in different models and sizes of different lithium ion battery cells with instantaneous high current discharge, low leakage current, long working life, both lithium battery and capacitor energy and power characteristics, suitable for a wide range of temperatures.
