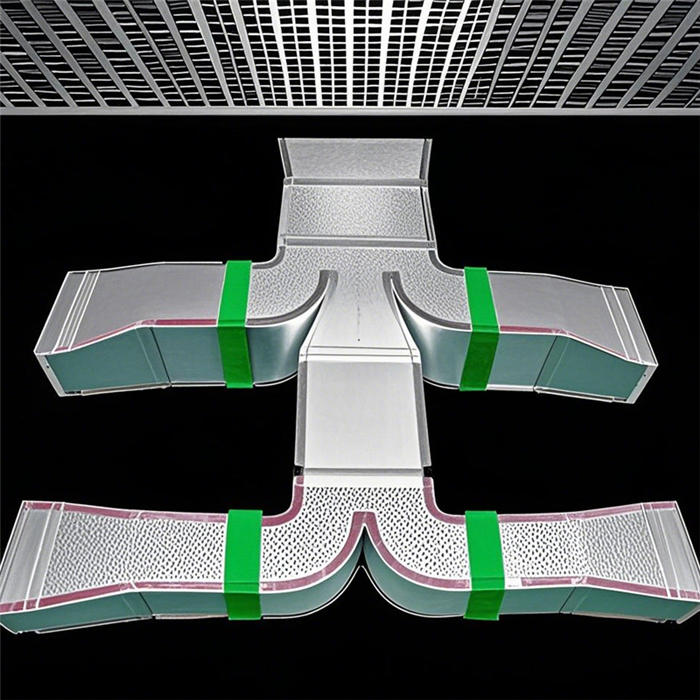

Fire Safe Phenolic Duct Series
Fire Safe Phenolic Duct Series
Product Description
The phenolic duct system is designed for high-risk environments. It uses closed-cell foaming technology to achieve ultra-low thermal conductivity (0.022W/m·K), which is 80% lighter than traditional metal ducts and meets Class A fire protection standards. The smooth inner wall design reduces wind resistance and is suitable for commercial buildings, laboratories and industrial exhaust systems.
Attribute Category
Attribute Item
Attribute Value Example
Basic Information
Product Model
SQ-PF-120 (FireSafe Phenolic Duct 120 kg/m³)
Material Composition
Phenolic resin + Glass fiber reinforcement layer + Flame retardant additives
Color
Standard gray / Custom colors (RAL color chart supported)
Physical Properties
Density
120 kg/m³ ±5%
Thermal Conductivity
≤0.022 W/(m·K)
Compressive Strength
≥0.15 MPa (ASTM D1621 standard)
Fire Performance
Fire Resistance Class
Class A Non-combustible (GB 8624-2012 / ASTM E84 Class A)
Smoke Density Rating
≤5 (GB/T 8627)
Environmental Adaptability
Operating Temperature Range
−40°C ~ +150°C
Corrosion Resistance
Resists acids/alkalis, anti-mold (ASTM G154 certified)
Installation Parameters
Standard Length
3m / 6m (custom cutting supported)
Connection Method
Flange connection / Socket joint (compatible with ISO 13351 standard)
Certifications & Compliance
International Certifications
CE / UL 723 / RoHS
