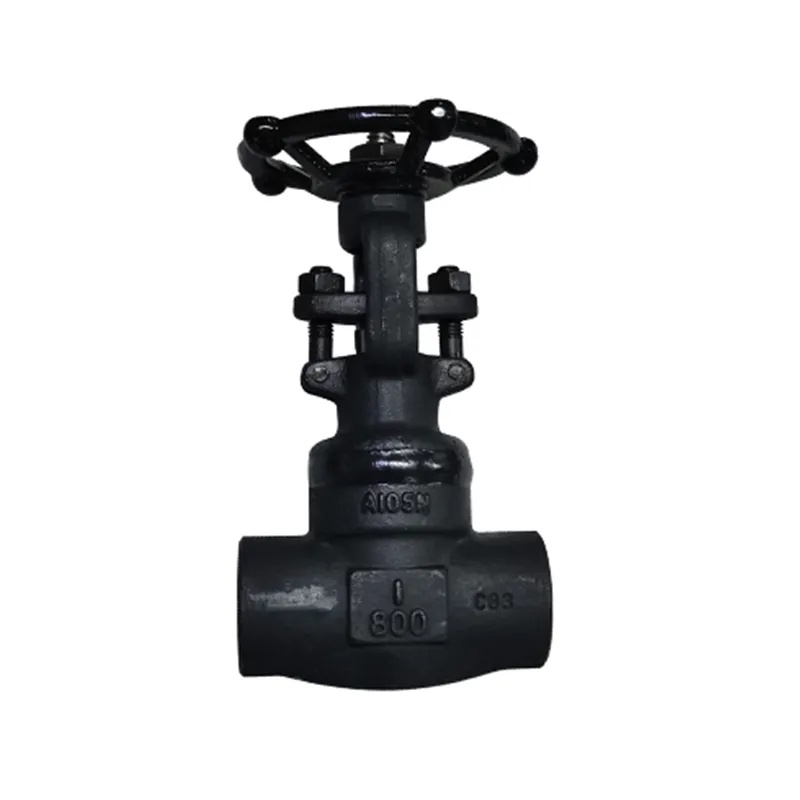

Forged Steel Gate Valve
Forged Steel Gate Valve is a robust and high-performance type of Gate Valve primarily used for reliable on/off isolation in demanding service lines. The key distinction lies in its construction method: critical components like the body and bonnet are made from forged steel, a process that enhances the material’s grain structure, resulting in superior mechanical strength, impact resistance, and integrity compared to cast equivalents. This makes it the preferred choice for high-pressure, high-temperature, or critical applications involving volatile fluids.
As a certified manufacturer with integrated production and stringent quality control, Chenyu Valves supplies high-quality Forged Steel Gate Valves across these three bonnet designs, manufactured to international standards (such as ASME) for reliable performance in petroleum, chemical, power, and other critical industries.
Main Features
Design and Manufacture Standard
API602
Face to Face
Manufacture’s Standard
Threaded End Connections
Socket Weld(according to ANSI B16.11) NPT(according to ANSI B1.20.1) Butt Weld(according to B16.25)
Test and Inspection
API598
Main Material
A105;F11;LF2;F22;F304;F316;F321 ;Monel;Alloy 20 etc…..
Size Range
1/2”-2”(DN15-DN50)
Pressure Range
150LB-2500LB,PN10-PN250
Temperature Range
-196℃~650℃
Applications
High-Pressure Systems; Steam, Water, and Gas; Power Plants；
