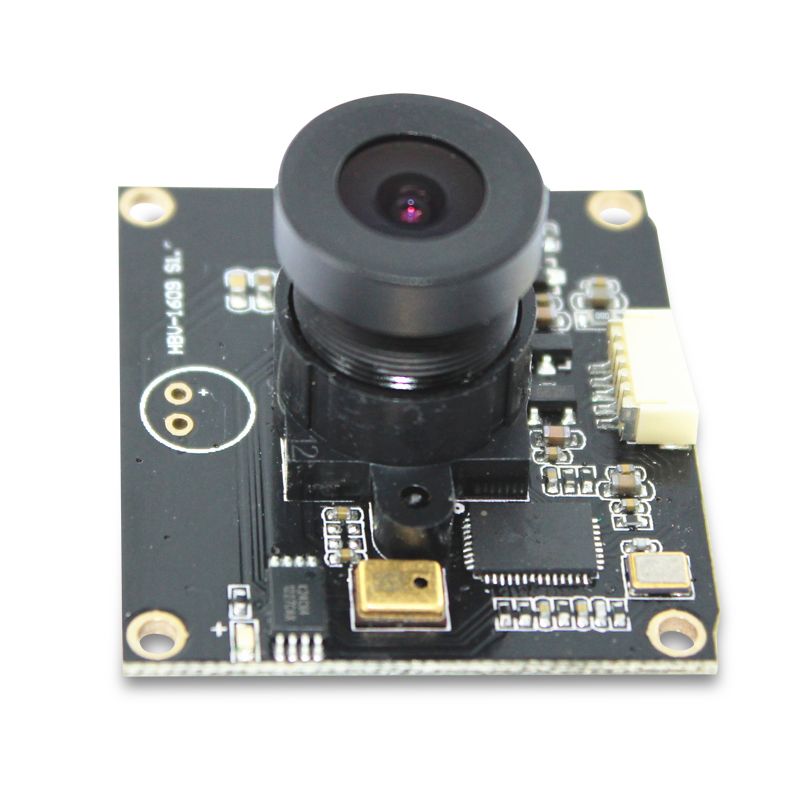

Free driver USB2.0 OV2643 android mini camera module built in microphone
Free driver USB2.0 OV2643 android mini camera module built in microphone
Product Description
Model No.
HBVCAM-1609 S1.0
Model Size
35mm × 31.5mm × 18.5mm±0.5MM
Temperature (Operation)
-30°C to 70°C
Temperature (Stable Image)
0°C to 50°C
Assembly technique
SMT (ROSH)
Focus
Fixed
Object distance
30CM-infinity
Resolution
600LW/PH (Center)
PCB printing ink
Black
interface
USB 2.0
Power supply
USB bus power
supply voltage
DC 5V±5%
Maximum Power consumption
400 mW
Operating system request
Win XP/win 7,8 / vista /android 4.0/ mac /Linuxwith uvc
Sensor
OV2643 (1/4” )
Seneor Package
CSP,Bare Die
Maximum resolution
1600*1200
Sensitivity
1250mv /(lux-sec)
Pixel Size
2.2μm x 2.2μm
Maximum Image Transfer Rate
MJPEG 320×240 30FPS / YUY2 320×240 30FPSMJPEG 352×288 30FPS / YUY2 640×480 30FPSMJPEG 640×480 30FPS / YUY2 800×600 15FPSMJPEG 800×600 30FPS / YUY2 1280×720 8FPSMJPEG 1280×720 30FPC / YUY2 1280×1024 8FPSMJPEG 1280×1024 30FPC / YUY2 1600×1200 4FPS
2Mega Pixel USB Cameras typically feature autofocus and manual focus options, higher sensitivity to low-light conditions, and image processing capabilities. They are compatible with various operating systems and can be used with popular video conferencing software such as Zoom, Skype, and Microsoft Teams.
HUIBER, a professional camera module manufacturer and supplier, offers a range of 2Mega Pixel USB Cameras with various features and benefits to cater to different needs. These cameras can be used in industries such as education, healthcare, and broadcasting, as well as for personal projects such as video blogging and photography.
