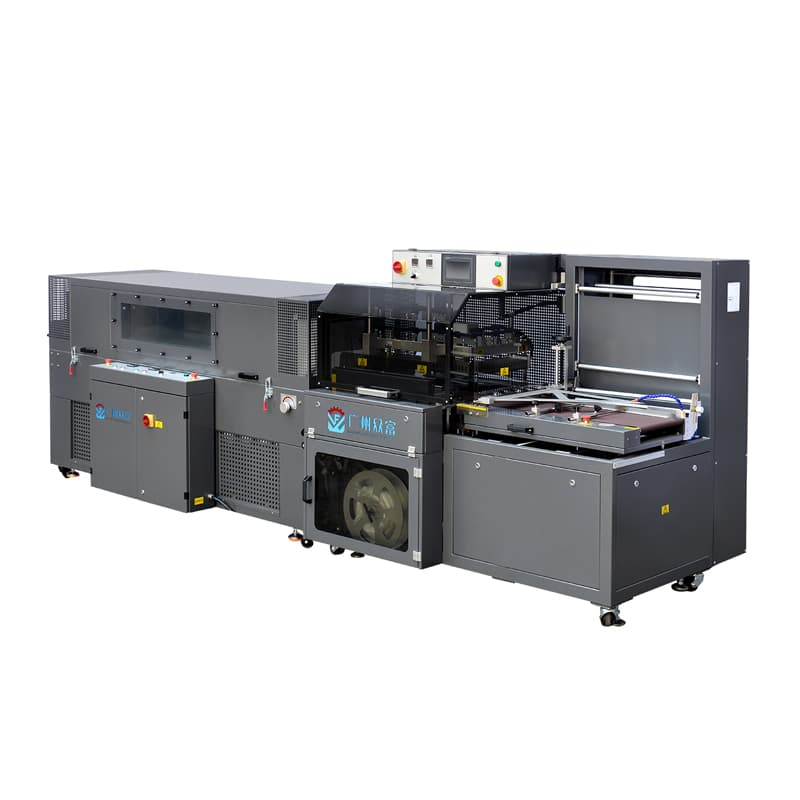

Fully Automatic Vertical L-Type Shrink Wrapping Machine

The Vertical L-Type Sealing Machine is a high-performance, fully automatic shrink packaging machine designed to provide stable operation, superior sealing quality, and outstanding durability. Its innovative vertical sealing design ensures smooth sealing action and creates a strong, clean, and aesthetically pleasing seal line, making it suitable for a wide range of products and packaging applications.

Equipped with an adjustable lifting blade holder, the machine centers the seal line on the product, improving packaging appearance and enabling smoother operation. The blade holder features a robust aluminum construction and a one-piece sealing blade, offering excellent resistance to deformation and ensuring fast, stable, and durable sealing performance.

Advantages：Featuring three pairs of electrical sensors, the automatic shrink wrapping machines accurately detects products of varying sizes, providing greater flexibility and reliable continuous production. The film conveying system, controlled by a dual braking assembly and frequency converter, enables stable film delivery and precise bag length control, ensuring consistently high-quality packaging results.

For enhanced safety and reliability, four proximity switches protect the sealing blade and packaged products during operation. This machine employs precision engineering, high-quality brand-name electronic components, and a robust mechanical structure, ensuring exceptional stability, low maintenance requirements, and an extremely low failure rate during long-term continuous operation.

A user-friendly touchscreen interface allows operators to easily adjust the machine’s width and height for quick product changes. An adjustable perforation system further optimizes shrink-wrapping performance, while durable needle roller brushes are designed to extend their service life.

This Automatic L-Bar Sealer can pack 40-55 packages per minute, providing efficient, reliable, and professional packaging performance. Fully compliant with CE standards and CE certified, it is ideal for manufacturers seeking high productivity, flexible operation, and superior packaging quality.

Specification：

Model:

ZF-A6345

ZF-7050

ZF-9070

ZF-1212

Machine size L*W*H(mm) :

1898*1125*1568

1875*1485*1730

2422*1750*1326

3185*2230*1535

Working Air pressure

80psi,6KG/cm2

Sealing blade size L*W(mm) :

630*465

700*500

900*760

1200*1200

Product size range L*W*H(mm) :

(80-560)*(50-380)*(5-180)

(80-560)*(50-380)*(10-180)

(200-830)*(200-630)*(10-250)

(400-1150)*(400-1150)*(10-300)

Power supply:

1P/220V/50HZ/2.5 KW

1P/220V/50HZ/3 KW

1P/220V/50HZ/4 KW

Net weight :

650KG

750KG

1200KG

1800KG
