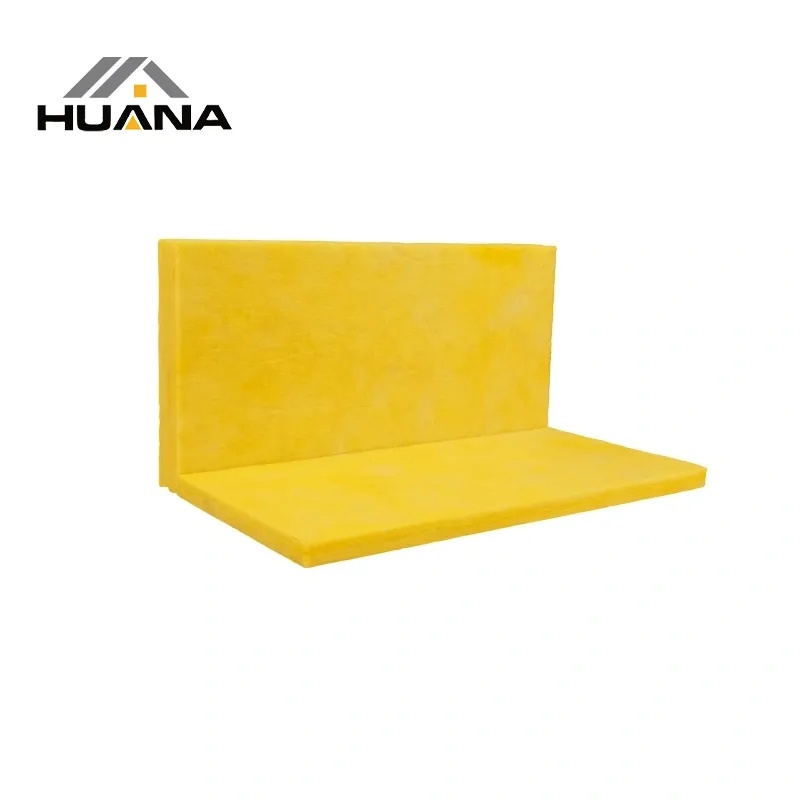

Glass Wool Board

HN glass wool board is a plate-like material made by melting quartz sand and other raw materials at high temperature, then centrifugally spraying them into fibers (with a diameter of ≤ 6 μm), and subjecting them to pressure curing. The surface can be adhered with PVC film, aluminum foil, etc., and it has the characteristics of low density (20 – 100 kg/m³) and low thermal conductivity (0.032 – 0.042 W/(m·K)). It is a Class A non-combustible material and safe usage temperature range of -120℃ to 400℃.

HUANA Glass Wool material is certified under UL, CE, and ASTM standards, ensuring global compliance for safety and quality. It is available with Aluminum Foil (FSK) or Polypropylene (WMP) facing.

Technical Specification

Thermal conductivity

 0.024 – 0.034 W/(m·K). Ultra-fine glass wool can reach as low as 0.024 W/(m·K);

Sound absorption performance

 Noise reduction coefficient NRC ≥ 0.85, high-frequency sound absorption coefficient > 0.8;

Environmental friendliness

 The formula without formaldehyde has passed ROHS testing.
