How to Evaluate an Inclined Ejector Slide Manufacturer
What defines the design and engineering of the slide mechanism

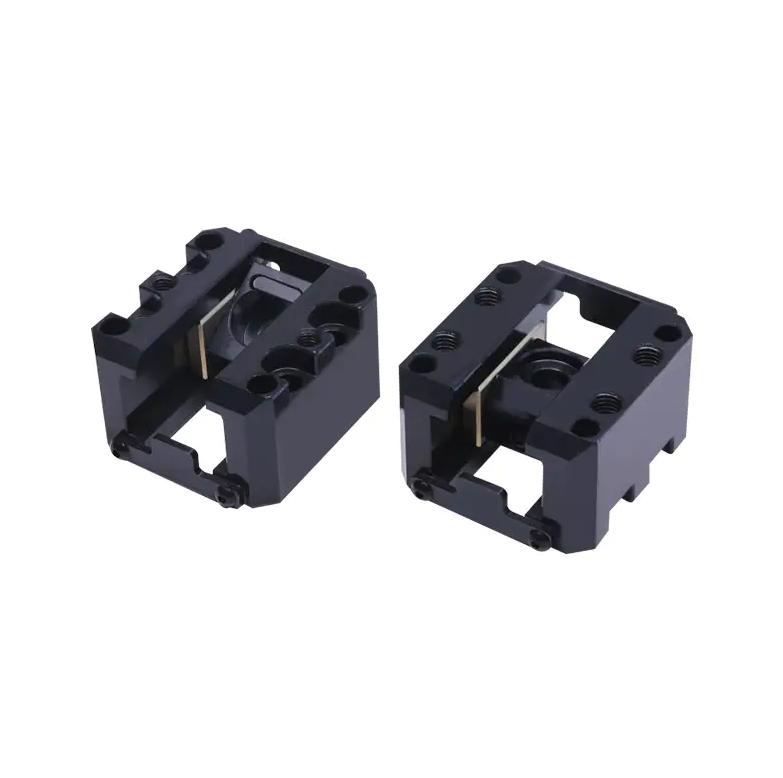

An Inclined Ejector Slide is a specialized mold component that combines angled movement with the ejection function, commonly used to form and release undercuts. Its core design involves precision-machined guide rails or hardened wear plates set at a specific angle (typically between 5 to 30 degrees) relative to the mold’s opening direction. A professional manufacturer engineers this mechanism by calculating the exact relationship between the vertical stroke of the ejector plate and the resulting horizontal/angled travel of the slide. This ensures the component retracts cleanly from the undercut without binding or scoring the cavity.
How are materials and surface treatments selected for longevity
Due to high lateral forces and continuous sliding friction, material selection is critical. Manufacturers typically use high-grade tool steels, such as hardened H13 or D2, for the slide body and its matching wear plates. These components undergo specialized heat treatment and surface hardening processes like nitriding to achieve a deep, wear-resistant case. Additionally, critical sliding surfaces are often coated with low-friction PVD coatings (e.g., TiN, DLC) to reduce sticking and galling, especially when molding abrasive or sticky materials like glass-filled resins or certain elastomers.
What precision machining and tolerance standards are applied
The functionality of an Inclined Ejector Slide hinges on micron-level precision. Manufacturing requires advanced 5-axis CNC machining and precision grinding to achieve the specified angle, flatness, and parallelism of all guiding surfaces. Tolerances for the guide rails and the matching grooves are exceptionally tight, often within ±0.005mm, to prevent play that could cause flash on the molded part or premature wear. The angles must be consistent across all slides in a multi-cavity mold to ensure uniform part ejection and cycle time stability.
What lubrication and maintenance features are integrated
Continuous operation demands reliable lubrication. A well-designed Inclined Ejector Slide incorporates integrated lubrication channels or grooves that distribute oil evenly across the sliding surfaces. Some designs feature self-lubricating bronze or polymer inserts within the wear plates. Manufacturers provide clear maintenance guidelines specifying lubrication schedules and compatible greases to prevent seizure. The ease of accessing and servicing these components without fully disassembling the mold is a key consideration for mold makers and maintenance technicians.
