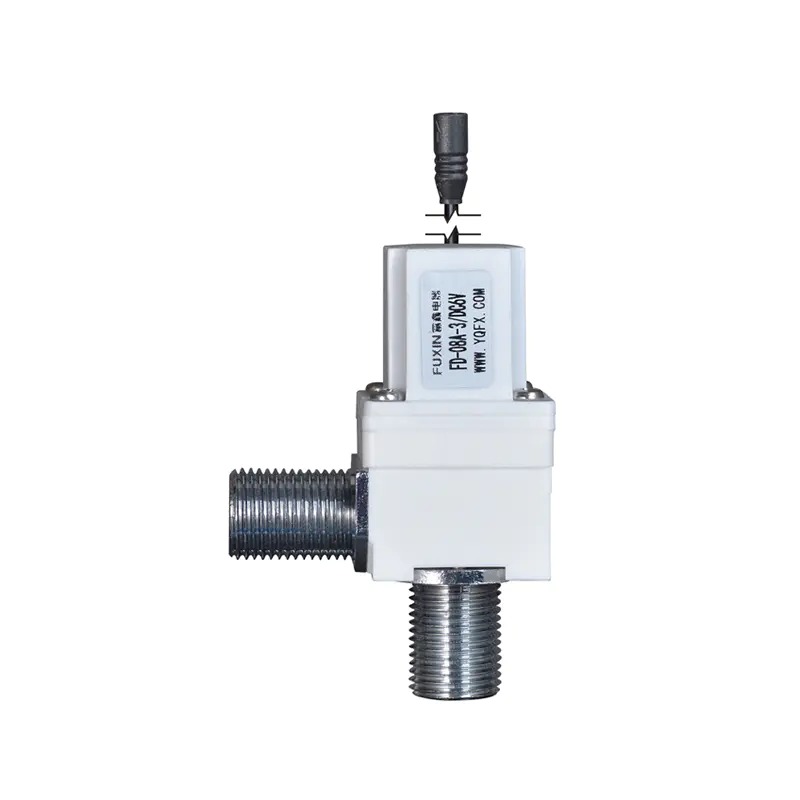

Infrared Sensor Faucet Solenoid Valve With Flow Control
Instruction
Rated voltageDC6VDC12VDC12VDC24VCoil resistance16Ω土0.5Ω(20°C)36Ω土2Ω(20°C)36Ω+2Ω(20C)130Ω+5Ω(20C)Min Current250mA300mA300mA166mASwitch modeDC pulse(latching type)AC and DC continnuous ( normal closed type)Pulse width≥30msOperating pressure0.02Mpa-0.8Mpa(2.9psi-116psi)Media temperature1℃-75℃Responding timeopen≤0.15s close≤0.5sService life≥1.000.000 cycles(CJ/T 194-2004)NOTE:3V and 9V can be customized
