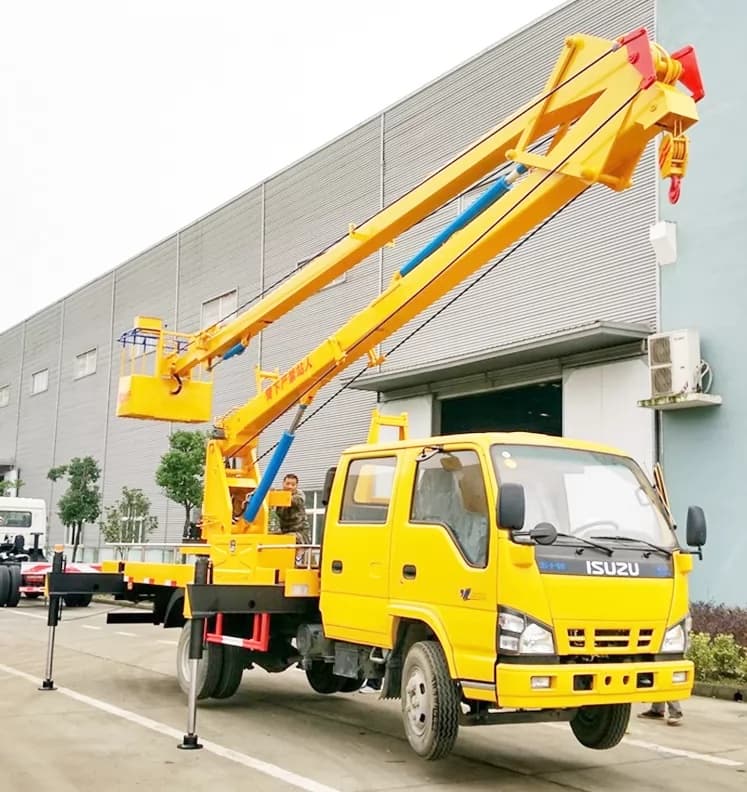

Isuzu Folding Arm Aerial Platform
Isuzu Folding Arm Aerial Platform
Products Description
1. The boom is made of high – strength steel plate HQ60/5.0, bent and welded into shape, with large bearing capacity and high strength.
2. The H – type outriggers have good stability. The outriggers can be operated simultaneously or individually, with flexible operation, and can adapt to various working conditions.
3. The turntable rotates 360° bidirectionally and adopts a gear – driven reduction mechanism (with self – lubricating and self – locking functions).
4. The upper – vehicle operation adopts an integrated electronically controlled valve block mode, with a beautiful layout, smooth operation, and convenient maintenance.
5. The lower – vehicle and upper – vehicle are interlocked, ensuring safe and reliable operation.
6. The upper – vehicle operation realizes stepless speed regulation through a throttle valve.
7. The suspended platform adopts an external pull – rod mechanical leveling method, which is more stable and reliable.
8. The turntable and suspended platform are equipped with start and stop switches, which are convenient to operate and save fuel.
Usage environmental conditions
1) Altitude: ≤5000 meters
2) Ambient temperature: -35℃ to +40℃
3) Relative humidity: ≤95% (at 25℃)
4) Seismic resistance capacity: Ground horizontal acceleration 0.3g
The ground vertical acceleration of 0.15g acts simultaneously and continuously for three sine waves, with a safety factor of 1.67
5) Maximum daily temperature difference: 15℃
6) Solar intensity (at wind speed of 0.5m/s) : 0.1W/cm ²
7) Maximum wind speed: ≤ 10.7m/s ²
Chassis model
ISUZU 100P
Overall dimensions
6790×1990×3150 (Reference Size)
Wheel base
3360mm
Engine
Engine model :4KH1-TCG4ODisplacement; 2999Power: 110hp
Transmission
MSB;manual 6
Traction system
4×2; LHD
Cabin
Double row; 4 People ; With air conditioning; Power steering
Tire specification
7.00R16 ;6 pcs
Max speed
95km/h
Aerial platform trucks, also known as boom lift trucks, cherry picker trucks, or high-altitude work trucks, are essential vehicles used for safe and efficient operations at height. Designed with a hydraulic lifting system and telescopic or articulating booms, these vehicles allow operators to reach elevated workspaces with full control, stability, and safety.
