Low Temperature Cooling Heating System

Thermal Management Systems For Vehicle/Battery Testing.

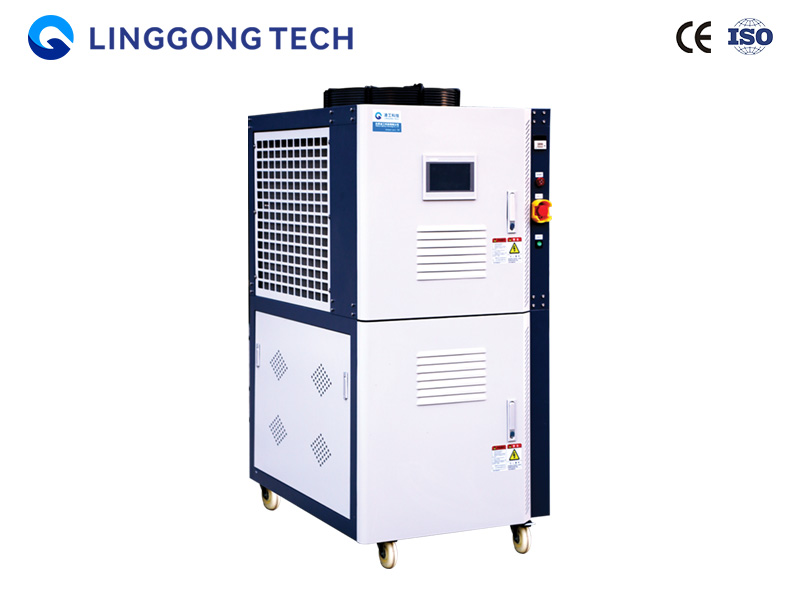

The conditioning device is specifically designed for thermal and fluid dynamics test of the liquid-cooled battery pack/battery module.Equipped with high-precision sensors It can test the flow rate, pressure, temperature and sealing of the liquid-cooled battery.

Low Temperature Series (Temperature Control Range -40~85℃,Flow control, Pressure Control)

Cooling power range: 02KW–20KW.

Temperature control range: -40~85℃.

Flow control range:2-20L/min.

Heating power:

Output channel: Output channel: 1,supporting multiple channels.

The control unit of the unit is operated by programmed software. Multiple communication interfaces with protocols are provided for communication with a higher-level automation system.

7 Inch HMI Touched Screen

Display the temperature, flow rate and pressure etc.

Set relevant function.

Check reason for malfunction.

Support data export.

Device Protection

The conditioning unit is protected from damage by safety valves, flow monitors and thermostats and various electrical protection components etc. At the same time,it also has self-diagnosis function and can record the malfunction information. This ensures high reliability and to check the reason of device fault easily in case of a malfunction occurring.

General specifications

Model

LQ05K-D

LQ7500-D

LQ10K-D

LQ15K-D

LQ20K-D

LQ10k-D-2L

LQ15k-D-2L

LQ20K-D-2L

LQ20K-D-3L

Temp.Range

-20~85℃

-40~85℃

-40~120℃

Temp.control accuracy

±0.5℃

Number of fluid output channels

Flow control range per channel

2~25 L/min

2~25 Lmin

2~25L/min

5~50 L/min

5～50 L/min

Flow control accuracy

±0.2L

Heating power

6kw

10.5kw

13.5kw

cooling capacity

100℃

6kw

7.5kw

10kw

15kw

20kw

20℃

6kw

7.5kw

10kw

15kw

20kw

Operation display size

7 inch color touch screen

Communication

Modbus RTU protocol RS485interface,optional CANcommunication bus,Ethernet interface TCP/IP protocol

Safety protection

With self-diagnosis function;Refrigerator overload protection;High pressure switch,overload relay,thermal protection

device,low liquid level protection,high temperature protection,sensor fault protection and other safety functions

refrigerant

R404a、R448a、R449a

Connection size to the test item

Cooling water at 20C°

≤32℃

Power 380V50HZ

20kW

25kW

30kW

35kW

Dimension cm

1300*750*1800

1300*750*1900

1800*900*1900

1800*1000*1900

1300*850*1900

1800*1000*1900

1800*1100*1900

Optional

purging function, automatic refill liquid fucntion, cooling power adjustable
