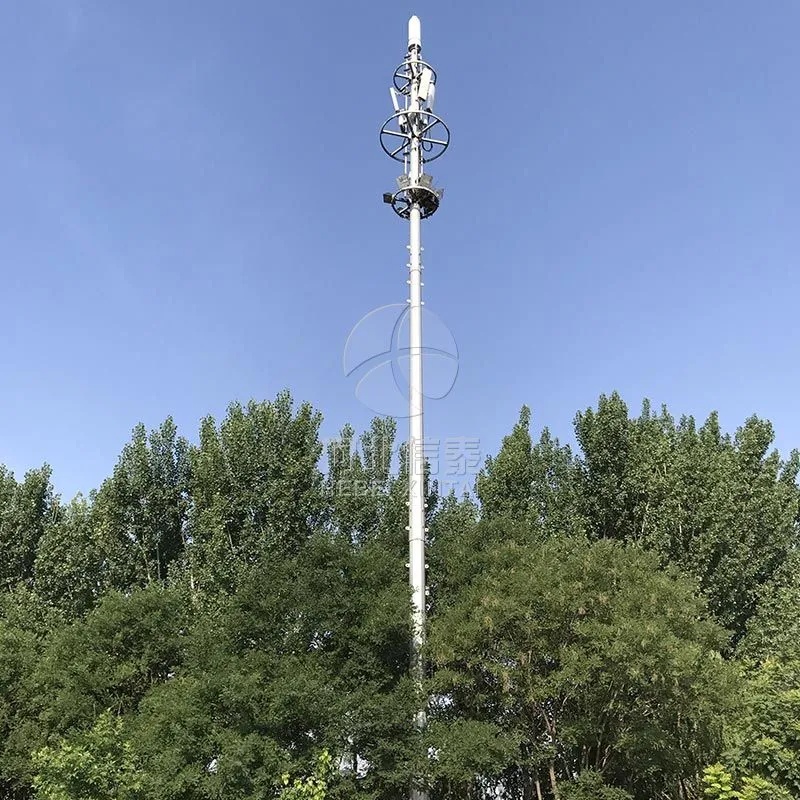

Monopole Telecommunications Tower
Monopole Telecommunications Tower
Xintai supplies monopole telecommunications towers for mobile communication networks, 4G/5G base stations, urban signal coverage, campus communication systems and telecom infrastructure projects. Also known as a single tube communication tower or steel monopole tower, this structure is designed with a self-supporting steel pipe body, offering a compact footprint, clean appearance and fast installation.
Our monopole telecom towers can be customized according to project height, antenna load, wind speed, site conditions, foundation requirements and communication equipment layout. With hot-dip galvanized surface treatment and a durable steel structure, they are suitable for long-term outdoor use in different environments.
What Is a Monopole Telecommunications Tower?
A monopole telecommunications tower is a self-supporting vertical steel tower made from a single steel tube or tapered steel pipe. Compared with traditional lattice towers, a monopole tower occupies less ground space and has a simpler appearance, making it suitable for urban areas, roadsides, residential areas, schools, industrial parks and scenic locations where space and visual impact are important.
The tower body is usually produced in several sections and connected by flanges or bolts on site. Antenna brackets, platforms, climbing ladders, cable supports, grounding components and other accessories can be added according to project requirements.
Structural Features
Main Body
Single reducing steel pipe, thinner at the top and thicker at the bottom
Connection
Segmented flange connection, on-site bolt assembly
Appearance
Simple and beautiful, straight lines
Large footprint
Minimal, environmentally friendly
Low wind resistance, quick installation
Corrosion Protection
Overall hot-dip galvanized
Common Heights
15m, 20m, 25m, 30m, 35m, 40m, 45m, 50m.
Advantages
● Beautiful appearance, suitable for urban areas, residential areas, schools, and scenic spots
● Minimum footprint, small foundation
● Fast construction, short construction period
● Low maintenance
● Can be beautified and disguised (bionic tree, lamppost style)
Applicable Scenarios
Urban, residential, and street base stations
Areas with high landscape requirements
Rooftop heightening towers
Core Technical Parameters
Material
Q235B / Q355B Steel Pipe
Corrosion Protection
Hot-dip galvanized
Wind Resistance
30～45m/s
Seismic Resistance
7～8 degrees
Verticality
≤1/1000
Grounding Resistance
≤10Ω
Design Life
≥30 years
Custom Design and Manufacturing Capability
Different telecom projects require different tower heights, equipment layouts and structural designs. Xintai can provide customized monopole tower solutions based on your site conditions and technical requirements.
Customization options include:
– Tower height
– Steel pipe diameter and wall thickness
– Antenna quantity and bracket layout
– Working platform design
– Climbing ladder and safety device
– Cable routing system
– Foundation and anchor bolt design
– Wind load and seismic design
– Surface treatment and appearance design
– Packing and transportation plan
Before production, customers can provide project drawings, tower height, wind speed, antenna load, installation location and other requirements. Our team will recommend a suitable tower structure according to the application.
