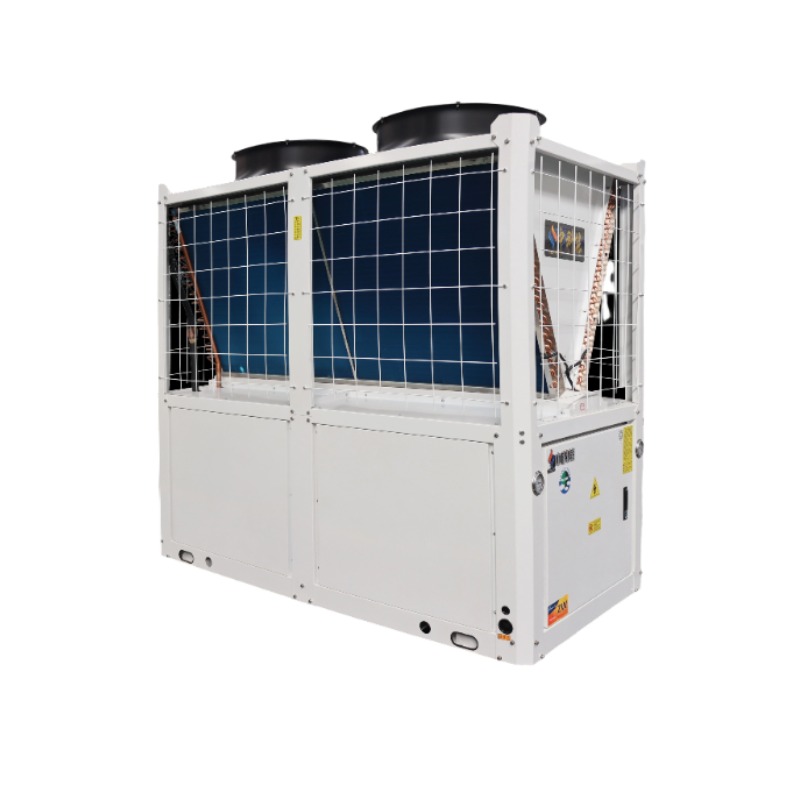

Normal Temperature Air Source Heat Pump
Applicable Places: Normal Temperature Air Source Heat Pump is widely used in comfortable central air-conditioning systems of public facilities such as hotels, shopping malls, office buildings, exhibition halls, airports, gymnasiums, etc., and can meet the different usage requirements of process air-conditioning systems in electronics, pharmaceuticals, biology, textiles, chemicals, metallurgy, electric power, machinery.
Technical Parameter TableNormal Temperature Air-Cooled Chiller (Hot Water) Unit Performance Parameter Table
Unit Model
CTEFMR65A
CTEFMR140A
CTEFMR280A
Cooling Capacity
65 kW
140 kW
280 kW
Heating Capacity
68 kW
150 kW
300 kW
Power Supply
Three-phase 380V 50Hz
Total Input Power
20.8 kW
43.8 kW
87.6 kW
Compressor
Type
Fully Closed Rotary
Refrigerant
Material
R410A
Control Method
Electronic Expansion Valve
Cold/Hot Water
Flow Rate
11.2 m³/h
24.1 m³/h
48.2 m³/h
Water Side Pressure
41~46 kPa
Connection Size(DN)
DN50
DN65
DN100
External Dimensions
Length (mm)
2100
2300
2300
Width (mm)
1100
1400
2400
Height (mm)
2000
2200
2200
Unit Weight(KG)
660
1000
1750
Noise Level(dB(A))
68
70
72
ZKN commercial heat pump solutions represent the cutting edge of energy-efficient HVAC for large-scale operations. Specifically designed as high-performance air source heat pump commercial systems, they utilize sophisticated inverter technology to deliver powerful heating, cooling, and sanitary hot water.
