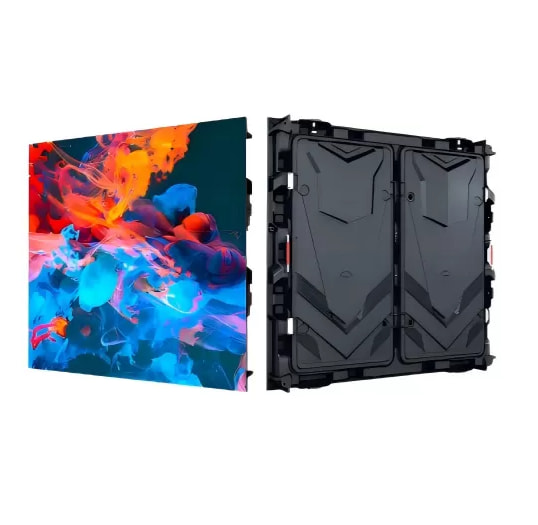

Outdoor Fixed LED Display-LOM960
Outdoor Fixed LED Display-LOM960
Products Advantages:
Cabinet light weight 28KG/PC
Standard size 960mmx960mm
Compatible with all the 320x160mm and 320x320mm modules
Both function fixed led display and rental led display
Better flatness than Iron or aluminum led display
Real and Front services
LISN outdoor LOM960 cabinet material is made from one-piece magnesium alloy, which is better flatness than Iron or aluminum led display.
Unlike iron cabinet and aluminum cabinet, Magnesium alloy cabinet LOM960 cannot be customized. It has a standard size of 960mmx960mm. It is also lighter than iron cabinet and aluminum cabinet, each one is about 28KG
LOM960 LED Cabinet can be both real service and front service. It is compatible with modules have same wholes like 320mmx160mm, 320mmx320mm. In this way, you can buy one set of empty cabinets and several sets of modules, you can replace them when you need different pixels led screen on different occasions.
The magnesium alloy cabinet has better heat dissipation performance. It is equipped with at least 2PC 5V fans to maintain good air circulation and 3PC 300W power supplies to achieve the most perfect working condition.
Because of good flatness and light weight, LOM960 can be both as fixed led display and rental led display. When you have a long time project need to fix the led display in a certain place, you can install the led screen by a fixed supporting structure, but if you need to remove it to a temporary event, you can install them by a removable and simple structure.
Specification
Pixels pitch
P2.5
P3.33
P4
P5
P6.67
P8
P10
LED
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
SMD 3 in 1
Module size(mm)
320×160
320×160/320×320
320×160/320×320
320×160/320×320
320×160/320×320
320×160/320×320
320×160/320×320
Module resolution
128*64
64*64
80*40
64*32
48*24
40*20
32*16
Density
160000 pixels/sqm
111111 pixels/sqm
62500 pixels/sqm
40000 pixels/sqm
22478 pixels/sqm
15625 pixels/sqm
10000 pixels/sqm
LED Cabinet size (mm)
960×960
960×960
960×960
960×960
960×960
960×960
960×960
Cabinet weight
28KG/PC
28KG/PC
28KG/PC
28KG/PC
28KG/PC
28KG/PC
28KG/PC
Material
Magnesium alloy
Magnesium alloy
Magnesium alloy
Magnesium alloy
Magnesium alloy
Magnesium alloy
Magnesium alloy
Brightness
5500-6500 cd/sqm (Nits)
5500-6500 cd/sqm (Nits)
5500-6500 cd/sqm (Nits)
5500-6500 cd/sqm (Nits)
5500-6500 cd/sqm (Nits)
5500-6500 cd/sqm (Nits)
5500-6500 cd/sqm (Nits)
AVG power consumption
460/sqm
450/sqm
420/sqm
350/sqm
320/sqm
300/sqm
280/sqm
