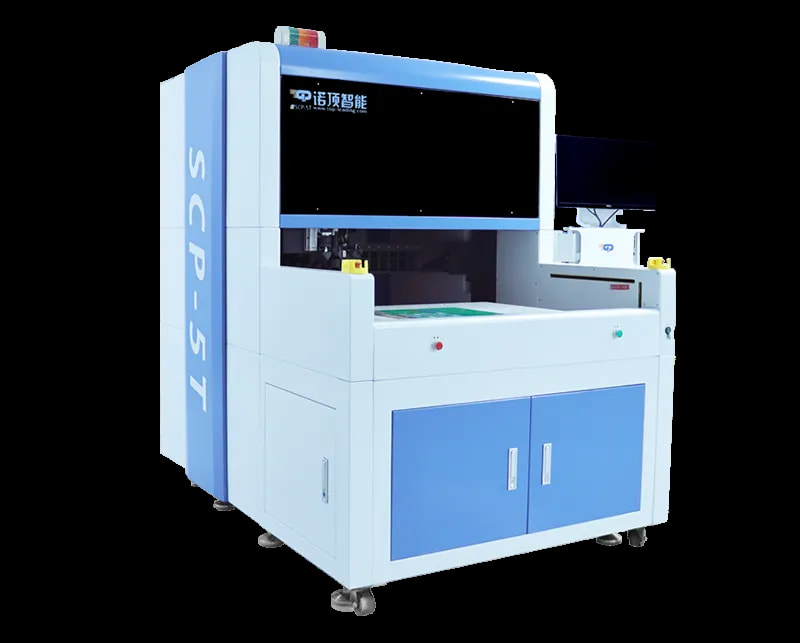

Press Fit Machine

Mainly used in the semiconductor packaging industry, it can be used for various types of integrated packaging.

Automatic Press-Fit Machine — Precision, Speed, Reliability

Upgrade your production line with our Automatic Press-Fit Machine — engineered for repeatable, high-throughput press-fit insertion with industry-grade precision. Built for electronics and connector assembly where consistent force control, part integrity, and uptime matter, our Press Fit Machine combines servo-driven motion, integrated process monitoring, and flexible tooling to deliver fast cycle times and near-zero defect rates.

Our Automatic Press-Fit Machine performs controlled press-fit insertions and swaging operations with programmable force profiles, automatic head/tool changes, and optional vision alignment — ensuring every connector or component is seated correctly without board damage. It’s designed for both inline SMT/PCB lines and stand-alone automation cells.

Key features

·  Servo-controlled press with force-profile management for repeatable, measurable insertions and automatic reject on out-of-spec events.

·  High-precision positioning & optional vision guidance to align pins/connectors before press-fit, reducing cycle rework.

·  Multi-head / multi-station configurations available for high throughput (parallel insertion) or flexible one-off setups.

·  Smart process monitoring & data logging (SPC) — force/position traceability for quality control and process optimization.

·  Modular tooling and quick-change fixtures so the machine adapts fast to new connector types and board layouts.

·  User-friendly touchscreen HMI and PLC control with recipe management for fast line changeovers.

Benefits for your factory

·  Reduce defects & rework — precise force control and vision alignment protect expensive PCBs and components.

·  Increase throughput — configurable multi-head systems and fast cycle recipes maximize production yield.

·  Improve traceability & compliance — built-in logging and reject handling make audits and quality reporting simple.

·  Lower total cost of ownership — robust design, easy maintenance, and modular upgrades keep downtime low.
