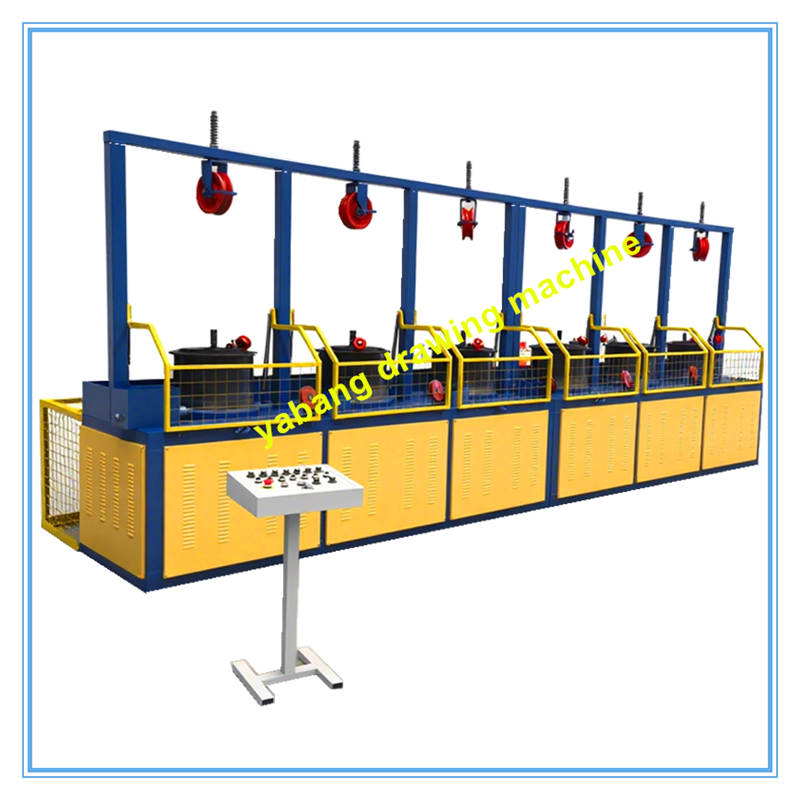

Pulley Wire Drawing Machine
Pulley Wire drawing machine is a kind of mechanical equipment widely used in the field of metal processing. It is mainly used to draw metal wire through a die to change its diameter, roundness, internal metallographic structure, etc., so as to achieve the predetermined shape and performance requirements.
Main parameters:
Type
Unit
YB1-6/550
YB1-5/560
Pulley Material Strength
Kg/mm2
δb≥110
δb≥128
Max Inlet Wire Diameter
mm
6.5
8.0
Max Outlet Wire Diameter
mm
3.0
4.5
Drawing Pass
mm
1-6
1-5
Max Working Speed
m/min
100-230
100-170
Each Motor Power
kw
15
18.5
Steel Wire Drawing Machine Function features and advantages:
High Precision: With the development of manufacturing technology, modern wire drawing machines can accurately control the diameter tolerance, roundness and other parameters of wires to meet the high-precision requirements of metal wires in different industries.
High Efficiency: Advanced equipment such as continuous wire drawing machines can achieve high-speed and continuous drawing operations, greatly improving production efficiency and reducing production costs.
High degree of automation: Equipped with advanced control systems, it can realize functions such as automatic speed regulation, tension control, and fault diagnosis, reduce manual intervention, and improve the stability and reliability of the production process.
Contact YABANG today for technical consultation, detailed quotation, or a live machine demonstration.
