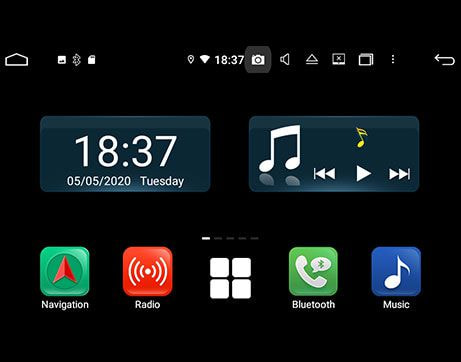

PX5 Customized Android
● Rock-Chip PX5 Car Multimedia
● Octa-Core with CP&AA
● NXP6686 Radio IC
● TDA7851 Power Amplifier IC
● Bluetooth 5.0
Rock-Chip PX5
Octa-Core
NXP 6686
TDA 7851
Bluetooth 5.0
SPECIFICATIONS
OS
Android 10 System
CPU
Rockchip PX5 ,Cortex-A53, Octa-Core
RAM
4G SAMSUNG DDR3
Flansh
32G/64G
GPS
SIRF III
LCD Screen
Hanstar Screen 1024*600 IPS
Touch Screen
G+G (2.5D)
Phone Link
CarPlay / Android Auto / Mirror Link
TFT drive IC
Rockchip PX5
Amplifer IC
TDA 7851
Radio IC
NXP 6686
Buletooth IC
GOC-MD-6202A V5.0
Video encoder
HD(720p,1080i,1080p)
Video input
One way reversing CVBS input + one way rear video input
Audio input
AUX
Video output
Two way rear video output
Audio output
Line out 4ch Subwoofer 2ch
USB interface
USB1(CP&AA); USB2
Multi media Parameters
Music format
MP3、WMA、AAC、WAVE,FLAC,APE,OGG,RA
Video format
MKV,AVI,MOV,MP4,3GP,MPEG, DAT,VOB,WMV,FLV,RMVB,RM,TS,TRP,M2TS
Picture format
JPG/BMP/JEPG/GIF/PNG
Radio Parameters
frequency range
FM：87.5MHz-108.0MHz, AM:522KHZ-1622KHZ
Radio storage station
FM/AM/RDS
Radio area
all over the world
Working voltage and memory current parameters
working voltage
9V～16V
working temperature
一20℃一70℃
Memory current
< 5MA
Power amplifier parameters
Test voltage
14.4V
Maximum output power
4*45W
