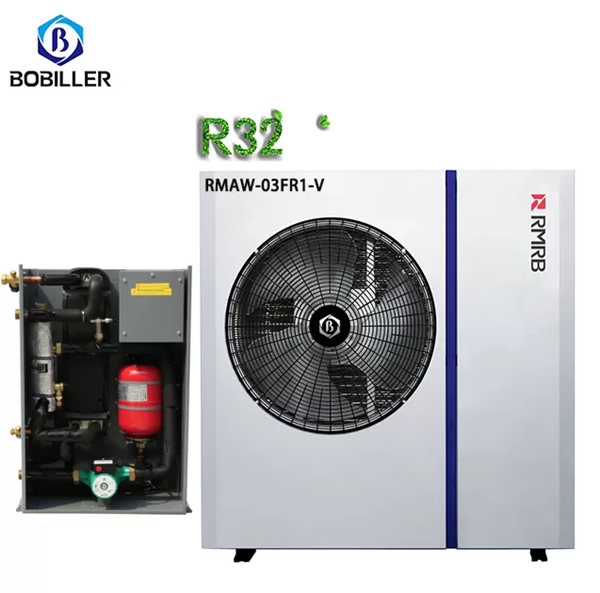

R32 Mini Split Heat Pump
The R32 Mini-Split Heat Pump offers an efficient HVAC system that can handle challenging environments that require outside air when you include the optional fresh air kit. Utilizing R32 refrigerant, this mini-split heat pump ensures superior energy efficiency and a lower environmental impact. Bobiller can tackle the most challenging single-zone mini-split applications by allowing fresh air to circulate through your space.
Model
RMAW-04FR1-V
Rated heating capacity
KW
3.8~15.8
Rate hot water capacity
KW
3.5～15
Rate cooling capacity
KW
3.8～10
Heating power consumption
KW
1.5～4.5
Hot water power consumption
KW
1.5~4.5
Cooling power consumption
KW
1.5～4.5
Voltage
V/Hz
220-240V～Inverter～1N
Rated Current
A
6.12/18.5
Rated heating water temperature
℃
Hot water:60℃ Heating:45℃ Cooling:12℃
Rated water flow
m³/h
2.7
Rated of waterproof
/
IPX4
Control mode
/
Heating/Cooling/DHW/Heating+DHW/Cooling+DHW
Refrigeration and volume
/
R32
Compressor
/
Mitsubishi/ EVI Mitsubishi Inverter (Selectable)
Nosie level
dB
≤50
Fan
form
Full DC fan motor
Circulation pump Built in
Wilo RS28/8
Heat exchanger
/
SWEP Plate Heat Exchanger (Selectable)
Operation ambient temperature
℃
（-25℃～43℃）
Expansion tank
L
2
Inlet pipe diameter
mm
DN25
Outlet pipe diameter
mm
DN25
Auxiliary Element built-in
KW
3
At Bobiller, we are your trusted Air Source Heat Pump Supplier providing comprehensive heating and cooling solutions. Our diverse range of products, including heat pump units, central air-conditioning equipment, and energy storage systems, positions us as a leading partner for businesses seeking efficient and sustainable HVACR systems.
