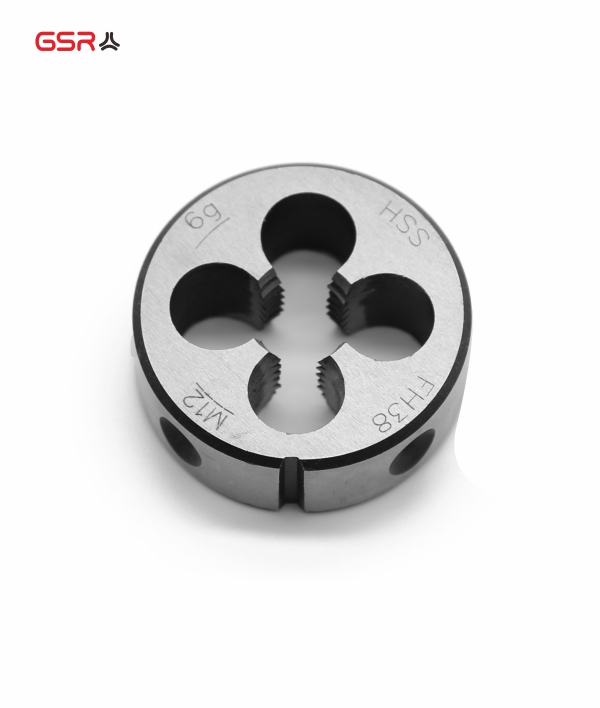

Round Die M6 M12 HSS

HSS Round Die Introduction

HSS round dies are round and usually have three or more cutting edges. They are either used for manual use of die holders or clamped into the quill to use in a turning lathe. The chips are discharged through the plane holes in round dies.

Round dies are used for thread processing to make external threads, such as cutting new threads or repairing old ones, also known as hexagonal dies and HSS round dies.

Round dies technical data

Type of thread

Metric ISO-thread

Standard

DIN 223 (DIN EN 22568)

Form

Solid Version(Form B)

Material

HSS-G/HSS-E

Tolerance

6g

HRC

61-66

Surface

Bright Finished

Cutting Direction

Right

Thread Angle

60°

Application

External Thread Cutting

What is the round die?

Round dies are the thread cutting tools used for making external threads. They are round and usually have three or more cutting edges. They are either used for manual use with die stocks or clamped into the socket to use on a turning lathe. Round dies are available slotted (style A) or closed (style B), with closed being the most commonly used style.

For more information on male thread cutting tools click here.
