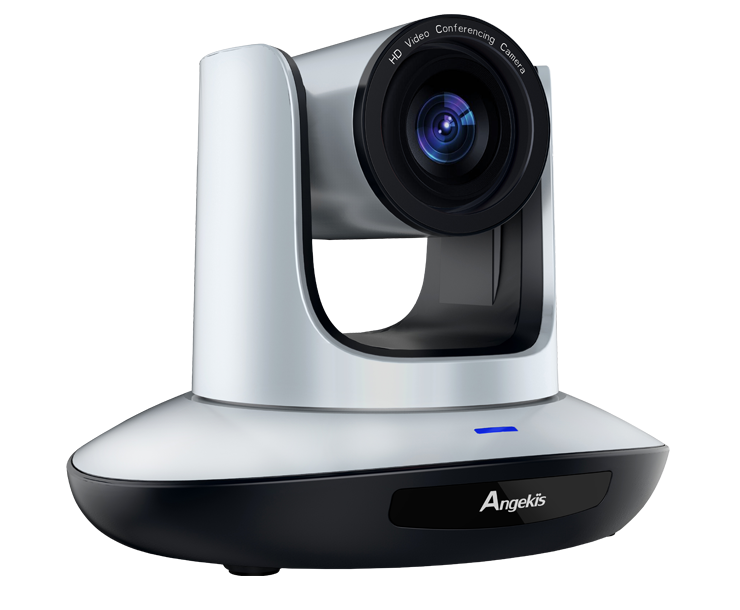

SABER PLUS Professional HD USB 3.0 IP PTZ Conference Room Camera
CRYSTAL CLEAR IN FULL HD
Saber Plus USB Conference Room Camera utilizes the highest quality sensors and a multi-glass lense, the Saber series delivers class-leading optics and crystal clear lifelike video that makes your video conference feel like you are sitting together in the same room.
12x + 2x Zoom
With a 12x Optical and 2x Digital zoom, you can get right into the details with the USB conference room camera, whether it be zooming into to a presenter or classroom whiteboard. The zoom is lossless meaning no pixelation or loss of quality.
Saber Plus USB 3.0 IP PTZ Camera Highlights
l Sleek and intelligent design
l Crystal clear HD image quality
l Low light ability. Excellent image quality even at low lux of 0.01 lux
l USB video conference camera with DVI-I (HDMI) & USB3.0 simultaneous output
l Far end camera control via USB3.0 UVC ability based on Codecs FECC (for example zoom.us)
l Desktop app control software included controlling the camera and video settings
l Visca control USB Conference Room Camera
l Utilizing belt drive technology the twin motors of the PTZ are ultra-quiet, smooth, and provide fast movement
l Larger FOV at 72.5 degrees with no video distortion
l 2D and 3D NR offers the best video conference camera to adjust to different room lighting
l Fully operational remote control with power-off function, setting the camera back to the start position
l Reverse mountable, tripod screw thread at the bottom
Saber Plus (USB 3.0 IP PTZ Camera) Technical Specification
Model
U3D-12FHD6
Sensor
1/2.5’’8.5MP CMOS sensor
Video Format
HDMI（V1.4）
SDI
USB
RJ45
1920*1080P60/50/30/25/59.94/29.97/24,
1920*1080P60/50/30/2
5/59.94/29.97/24,
1920*1080P60/50
/30/25（USB3.0）
1920*1080@1~30（Main Stream）,
1920*1080I60/50/59.94,
1920*1080I6
0/50/59.94,
1280*720P60
/50/30（USB3.0）
1280*720@1~30/1027*576@1~30/640*36
0@1~30（Sub stream）
1280*720P60/50/30/25/59.94/29.97
1280*720P60/50/3
0/25/59.94/29.97
1280*720P25
（USB3.0&USB2.0）
1024*576P30
（USB3.0&USB2.0）
960*540P30（USB2.0
640*360P30（USB2.0）
512*288P30（USB2.0）
Zoom
f3.92~47.32mm（12X），F1.8~2.8，View Angle：72.5°（Far）-6.3°（Near）
Video Interface
HDMI（V1.4），SDI，RJ45，USB3.0，USB2.0
FOV
72.5°
F.no.
Wide: 1.84 Tele: 2.81
Min. Focus Distance
Wide: 0.3m Tele: 1m
Preset
Remote controller：10；RS232:128；Accuracy：0.1°
Rotation Angle
Pan: -170°~ +170°; Tilt：-30°~ +90°
Rotation Speed
Pan: 0°~120°/s; Tilt: 0°~80°/s
Control Port
RS232\RS485（optional）\RJ45（VISCA over IP）\USB3.0（UVC1.5）\USB2.0（UVC1.1）
Video Port
HDMI/ RJ45/SDI/USB3.0/USB2.0
Network Speed
1000M
2D Noise Reduction
Supported
3D Noise Reduction
Supported
SNR
>50dB
Focal Length
f＝3.92(near)～47.32mm(far)
Minimum Lux
0.01 lux
White Balance
Auto/Indoor/Outdoor/Manual/Outauto/Sodium Lamp Auto/Sodium Lamp
Exposure
Auto/Manual/Bright/Shutter/Iris
Anti Flicker
OFF/50Hz/60Hz
D/N Mode
Supported
Gamma
Supported
WDR
Supported
Mirror Image
Supported
PanTilt Flip
Supported
Iris
Auto/Manual
Electric Shutter
Auto/Manual
BLC
Supported
Focus
Auto/Manual
Video Encode
H.264/H.265（default：H.264）
Bit Rate Control
Variable Bit Rate，Constant Bit Rate
Video Bit Rate
0Kbps~15360Kbps
Frames
50HZ:1fps~50fps 60HZ:1fps~60fps
IP Protocol
TCP/IP，HTTP，RTSP，DHCP，RTMP，Onvif（RTMP，Onvif will be available in next version）
POE
Supported
Daisy Chain
Support RS232 serial daisy chain
Minimum Lux
0.01lux
Input Voltage
DC12V/POE
Dimension
220mm x 190mm x 173mm
Net Weight
1.8KGS（3.98LBS）
