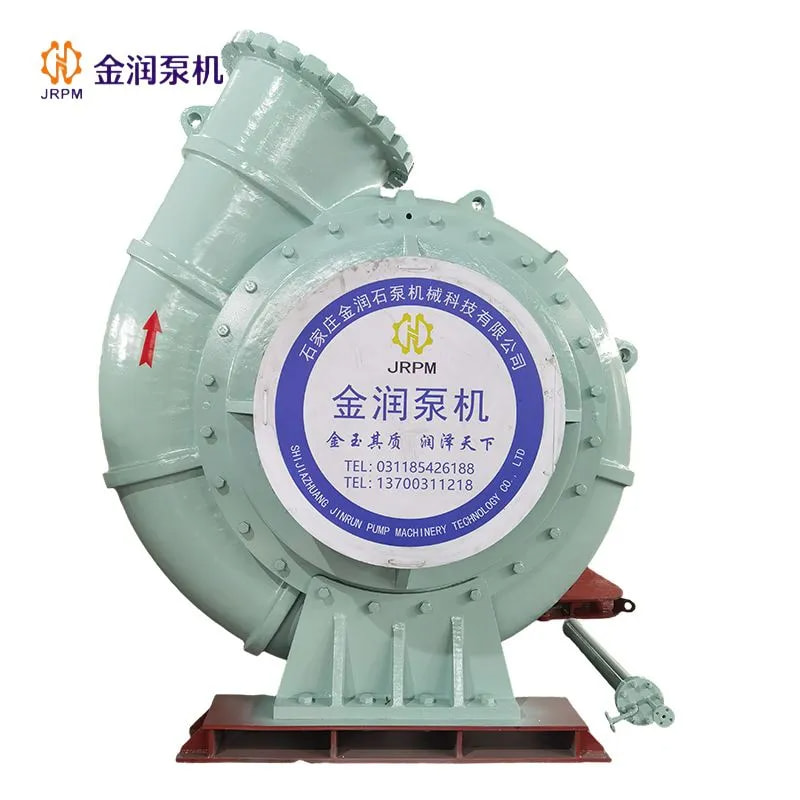

Single Casing High Efficiency Large Flow Dredge Pump
Shijiazhuang Jinrun Pump Machinery Technology Co., Ltd. specializes in manufacturing Single Shell High Throughput Dredge Pumps, designed to handle demanding dredging, reclamation, and material transport operations. These pumps combine a robust single-shell structure with advanced hydraulic design, delivering exceptional flow capacity, energy efficiency, and durability for continuous operation in harsh environments.
The single-shell design ensures simplified assembly, reduced weight, and high structural stability, allowing operators to achieve maximum throughput while minimizing maintenance downtime. Precision-engineered impellers and casings enhance slurry transport efficiency, even under high solids concentrations and abrasive conditions.
Key Features
1. High Throughput Performance
Optimized impeller and volute design for maximum flow rates.
Efficient handling of abrasive, high-density slurries.
Reduces energy consumption while maintaining strong operational output.
2. Single-Shell Structural Advantage
Compact and stable design reduces installation footprint.
Simplified assembly and disassembly for faster maintenance.
Enhanced alignment stability during prolonged operation.
3. Durable and Wear-Resistant
Constructed with high-strength, wear-resistant alloy materials.
Forced lubrication systems ensure smooth operation of critical components.
Capable of long-term continuous service under heavy-duty conditions.
4. Flexible and Customizable
Suitable for submersible dredging or dry installation.
Configurable for different flow rates, heads, slurry densities, and particle sizes.
Can be adapted for single-pump or dual-pump arrangements depending on project demands.
5. Easy Maintenance and Operation
Front-disassembly mechanism and modular parts reduce maintenance time.
Dedicated tools and clear instructions support quick on-site repairs.
Designed for minimal downtime and simplified routine inspections.
Small-size Dredge Pumps (Diameter ＜250mm)
Available in single-pump casing and double-pump casing designs, these compact mud pumps stand out for their superior pressure resistance that enables efficient long-distance solid-liquid material transport. Boasting a simplified structural design, they feature easy disassembly, assembly and part replacement, significantly reducing maintenance time and operational costs for our customers.
Medium-size Dredge Pumps (Diameter 200–500mm)
Designed with a single-pump casing, single-stage, single-suction and cantilevered horizontal structure, this series offers two flexible configurations: integrated bracket type and separate pump-and-casing type. All models are fitted with submersible pumps for versatile underwater operation; for high-lift working scenarios requiring 2-level or higher series operation, the in-hull pump unit can be customized into a dual-pump system, effectively boosting conveying head and adaptability to complex working conditions.
Large-sizer Dredge Pumps (Bore Diameter 600–1200mm)
This heavy-duty series provides two structural options for in-cabin use: dual-pump casing type and single-pump casing type, both adopting a single-stage, single-suction, cantilevered horizontal design with a stable integrated support bracket. Equipped with forced dilute oil lubrication system, the pumps ensure smooth and wear-resistant operation of key components, extending service life under heavy load. For submersible applications, the single-pump casing design is exclusively adopted to reduce overall weight, making the pump much easier for lifting, lowering and on-site movement. A humanized front-disassembly mechanism is paired with professional dedicated tools, realizing quick assembly and disassembly—greatly simplifying daily maintenance, on-site repair and part replacement work.
