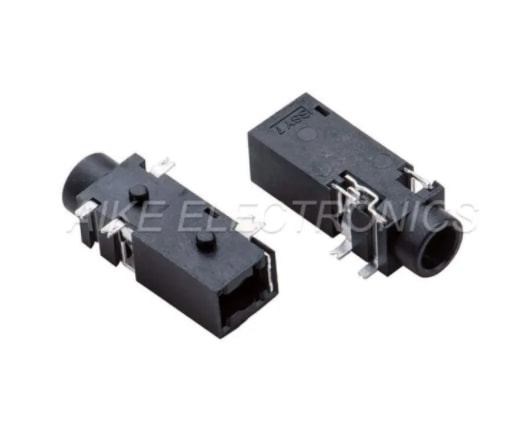

SMT Contacts 3.5mm Audio Jack Port( Phone Jack)
Belongs to the connector field, Audio Jack is applied to Audio signal with different designs. The Audio jack connector for laptop computers, commonly known as the headphone socket, is the other end that fits into the earplugs.(can also be used in mobile phones, tablets, etc.) reliable design, proven and applied
Type
3.5mm Audio Jack( Phone Jack), Receptable, SMT contacts, with 2 position hosts
Contact
3.5mm Plug
Materials
For housing can be PBT,LCP,PA9Tand so onFor Contact normally can be Copper.
Colour
Black or Customized Color
Plating
For Contact,Au,Ni,and Tin Plating
Plating Thickness
For Contact, 1U’,3U’5U’15U’,30U’ or HigherIt depands on custoer request
Rating
DC 30V 0.5A
Contact resistance
≤50 mΩ
Insulation resistance
≥100MΩ(DC250V)
Withstand voltage
500VAC
Insertion and Extraction force
3-25N
Life test
5,000 cycles
Application
Computer, Mobile,Earphones and other equipment
Package
Normally Tape & Reel Package Or Customized Package
Delivery Time
Usually 25-35 days after receiving the 30% deposit
Payment terms
TT, L/C, DP or Negotiable
Note
This part is only one sample for this serious products, we can change the shell, the legs and even housing to make lots of similar parts. We are so able to produce other standard as per the clients’ requirements. Just let us know.
The audio jack is an industry standard connector that has many potential uses beyond providing a basic audio connection. 2.5 mm or 3.5 mm audio jacks are common in smartphones, media players, hi-fi devices and many other devices. It can be used not only for easy connection of external speakers or headphones, but also for smartphone selfie sticks equipped with a camera shutter release button.
What types of audio connectors are there?
1. Analog audio interface
TRS interface (large / small three-core), RCA Lotus head, XLR Canon port, etc.
2. Digital audio interface
AES / EBU interface, S / PDIF interface, coaxial interface, RCA coaxial interface and BNC coaxial interface, optical interface.
