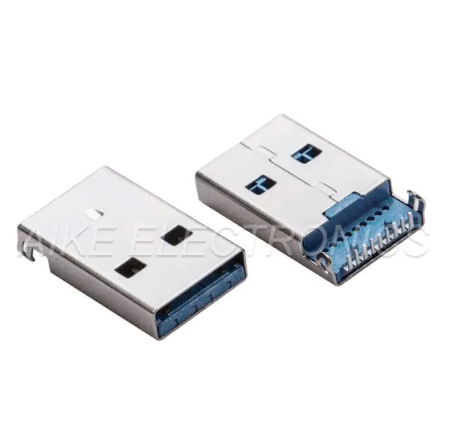

Standard USB 3.0 A Type Plug Part

Introduction:

USB3.0 A Type, Male Part, Mount PCB, DIP shell and DIP contacts, this part is widely used for mainboard of STB, Desktop, Computure, TV, etc. The speed of Tranferring date can be up to 5GB/Sec. Fully meet USB3.0 Association Standard.

TypeUSB 3.0 A Type Male Part, DIP type with Position legs（Sink PCB type).MaterialsFor housing can be LCP,PA6T,PA9T and so onFor shell can be SPCC, Copper and so on.Both are depands on custoer requestColourBlue or Black or Customized ColorPlatingFor Shell, Ni and Tin PlatingFor Contact,Au,Ni,and Tin PlatingPlating ThicknessFor Shell, 50U’,100U’ or HigherFor Contact, 1U’,3U’5U’15U’,30U’ or HigherBoth are depands on custoer requestElectronicalCurrent Rated:1.8 Amperes for pin1&pin4.0.25 Amperes other contactsRated Voltage:C 100V(RMS) Contact Resistance:3OmΩ Max for pin1&pin45OmΩMax for other contacts Insulation Resistance:100Megohms Min MachenicalInsertion Force:.35N MaxWithdraw Force:10N MinApplicationElectromechanical Equipment, Automobile Supporting Equipment, Medical Equipment, Small household appliances equipment, Beauty equipment and Network equipment and other productsPackageTray Package or Tape Reel Or Customized PackageDelivery TimeUsually 25-35 days after receiving the 30% depositPayment termsTT, L/C, DP or NegotiableNoteThis part is only one sample for this serious products, we can change the shell, the legs and even housing to make lots of similar parts. We are so able to produce other standard as per the clients’ requirements. Just let us know.
