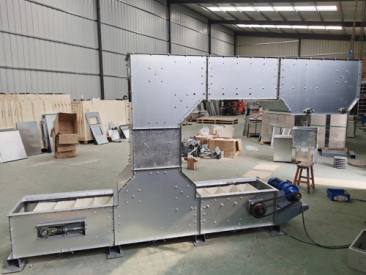

T-type elevator
The T-type pendulum bucket elevator conveyor is a bulk material handling system built around a T-shaped path: one central vertical lifting section connects to a bidirectional horizontal arm at the top, allowing a single machine to simultaneously feed two or three downstream production lines, filling stations, or silos from one drive unit. This T-shaped horizontal expansion design is the defining feature that separates it from the C-type (single-direction horizontal run) and Z-type (straight vertical-to-horizontal path) configurations.
Product Advantages
Multidirectional non-destructive conveying capability with single-machine multi-line service: The T-shaped horizontal expansion design enables simultaneous connection of 2-3 production lines, preventing material fragmentation and damage during conveyance.
Diverse configurations: Z-type, C-type, T-type feeding systems, horizontal distribution systems, etc.;
Single-point/multi-point feeding, single-point/multi-point discharging;
Leak-proof sealed hopper;
Standard high-quality nickel-plated chain with corrosion resistance and low wear;
The T-type distributing bucket elevator conveyor handles free-flowing granular, powdered, and small-lump materials with particle sizes from fine dust to approximately 50 mm pieces, and bulk densities from 300 to 1,500 kg/m³. It is especially well-suited for applications where one material source must reach several process points.
