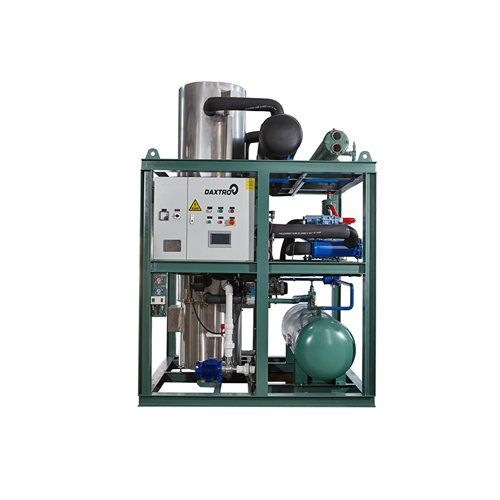

Tube Ice Machine
A Tube Ice Machine is one of the most widely used industrial ice-making solutions for businesses that need hygienic, crystal-clear, slow-melting ice in large quantities. Known for efficiency, durability, and versatile applications, tube ice machines are used across food processing, fisheries, beverages, concrete cooling, and industrial refrigeration.
Model Parameters
TD10
TD20
TD30
TD50
TD100
TD200
TD300
TD500-TD1000
Daily output (T/24h)
1
2
3
5
10
20
30
50-100
Compressor Power(HP)
4
9
14
28
50
2*50
3*50
Ammonia System Custom-made
Fan Power for Cooling Tower
0.18kw
0.37kw
0.55kw
0.75kw
1.5kw
1.5kw
2.2kw
Cooling Pump Power
0.75kw
1.1kw
1.5kw
2.2kw
4kw
5.5kw
7.5kw
Unit size
L (mm)
1520
1550
1680
1790
2320
2800
3500
W (mm)
1000
910
950
1080
1820
2130
2300
H (mm)
2020
2010
2200
2270
1830
2100
2400
Unit N.W.(kg)
900
1400
1750
2070
3200
/
/
Industrial ice machine uses an evaporator system where water freezes around vertical tubes.
Ice Making Process
1. Water Circulation
Filtered water enters the evaporator and circulates continuously.
2. Freezing Process
Refrigerant absorbs heat, freezing water layer by layer inside the tube walls.
3. Ice Harvesting
Once the desired thickness is reached, hot gas or defrost technology releases the formed tube ice.
4. Cutting and Discharge
Ice is cut into uniform lengths and discharged automatically.
The process is continuous, automated, and highly efficient.
Choosing the right Ice Manufacturing Equipment is essential for efficient cooling, product preservation, and operational success.
