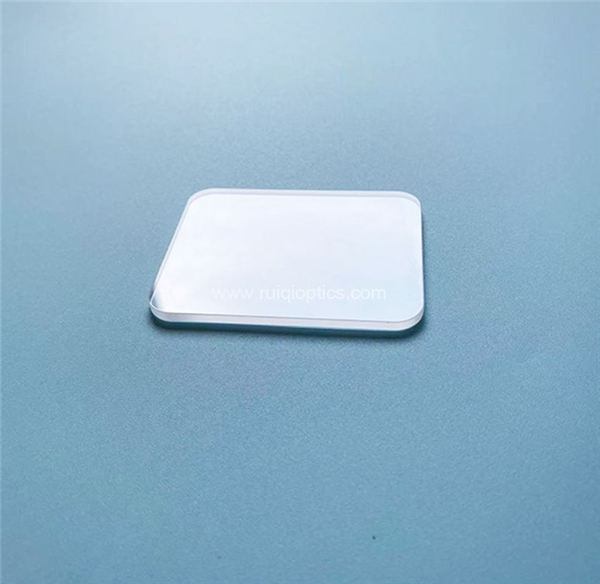

UV Fused Silica Window

Fused Silica Window is usually used a protective window for an electronic sensor or a detector of the external environment, which is used to separate the environment on both sides, such as separating the inside and outside of instrument are isolated from each other, so as to protect the internal devices, it does not change the magnification of the system.

Substrate

UV fused silica( JGS1, JGS2,JGS3)

Size

5-420mm

Thickenss

0.1-20mm

Dimension Tolerance

+/-0.01~+/-0.1mm

Shape

circular,rectangular, wedged, cone,tube, window with hole,dome,irregularly shape, customized

chipping

<0.1mm

Bevel

<0.2*45degree

Surface Quality

60/40-10/5 as request

Parallelism

<3arc min

Antireflective Coating

R<0.1%

CCRQ Optics can supply fused silica with different substrate, our fused silica window included Corning 7979, Corning 7980, fused silica (JGS1, JGS2, JGS3), we provide fused silica products including UV fused silica window, fused silica protective window, fused silica lenses, fused silica prism, fused silica light guide block, and UV and IR material.
