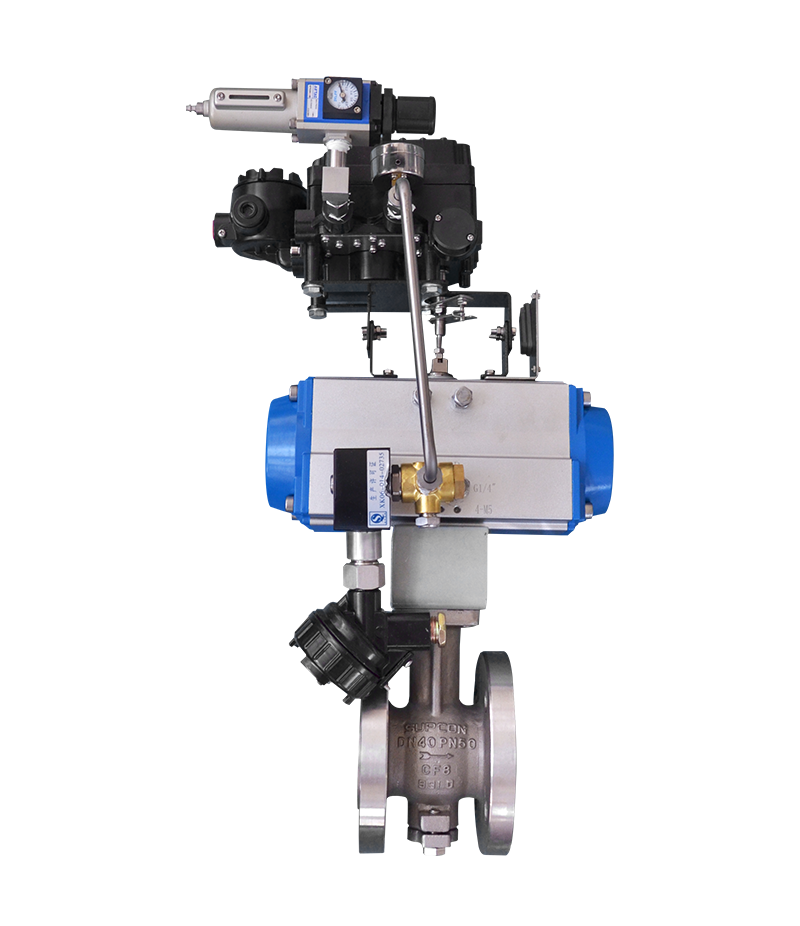

V Notch Ball Valves

Our V-Ball, V-Port and v notch ball valves are made of high-quality materials. v notch ball valve, the “V” notch is a unique design that allows for precise flow and the ability to regulate and control flow through a 30°, 60° or 90° V “notch”. The v notch ball control valve is a low-maintenance valve with a tight bubble shut-off function. All v notch ball valves are highly manageable and can operate at high temperatures (up to 1000°F) and pressures up to 500PSI (liquid) and 150PSI steam. V notch ball valves are cost-effective compared to valves with similar pressure drops and low flow control (down to 0.07) Cv. The v notch ball control valve is cost effective compared to valves with similar pressure drop and low flow control (down to 0.07). Our v notch ball valves can be manually configured or actuated for automated handling and control. These valves are available in ANSI flange, NTP (threaded) and socket weld.

V Notch Ball Valves introduction:

VN6 series V-notch ball valve, is concentric segmental ball valve for modulating applications. Its V-notch segmented ball permits wide range ability and produces an equal percentage flow characteristic. As the V-notch ball rotates into the seat ring, it creates a wedging and shearing effect to prevent dragging or slurries between the seat and the ball.Our v-notch ball valves normal size is 1″ to 12″.

V Notch Ball Valves Advantage:

The v-notch ball valves are used settled and also clamped driven shaft plus sphere shaft with splined connection made for absolutely no shed motion for very accurate placing and specific control.
