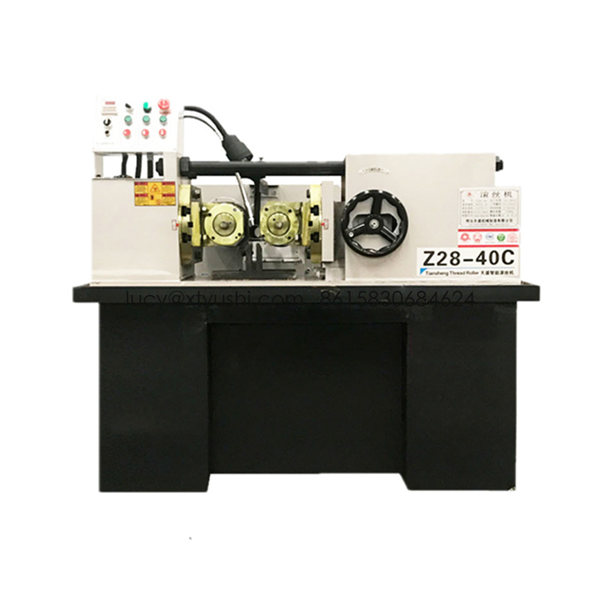

Z28-40 screw thread rolling machine
Screw Thread Rolling Machine is a versatile and efficient solution for producing threads across various industries. From hardware construction to automotive components, these machines have revolutionized the manufacturing process. The Two-axis thread rolling machine and Three-axis thread rolling machine cater to different production needs, offering superior precision and strength in thread formation.
Thread rolling, performed by a Screw Thread Rolling Machine, offers multiple benefits:
High Production Rates: Enables mass production of threads quickly and efficiently.
Enhanced Tensile Strength: Work hardening during the process increases thread durability.
Superior Surface Finish: Produces smooth, uniform threads with reduced surface defects.
Material Versatility: Suitable for steel, aluminum, brass, plastic, and more.
No Material Wastage: A chip-free process ensures cost-efficient thread production.
Items
Parameters
Thread rolling thread range
diamete
φ4-φ36mm
thread pitch
0.5-4.0mm
Spindle Angle
±6°
Maximum rolling pressure
120kn
Spindle RPM
Exchange gear 39/49/66/82rpm
Thread rolling wheel range
diameter
φ120-φ170mm
aperture
φ54mm
Maximum width
100mm
Spindle drive power
4.0kw
Hydraulic transmission power
2.2kw
Physical size
1450×1300×1300mm
Machine weight
1100±50kg
Maximize efficiency with a Screw Thread Rolling Machine. Designed for precise, durable, and high-speed threading of screws and rods.
