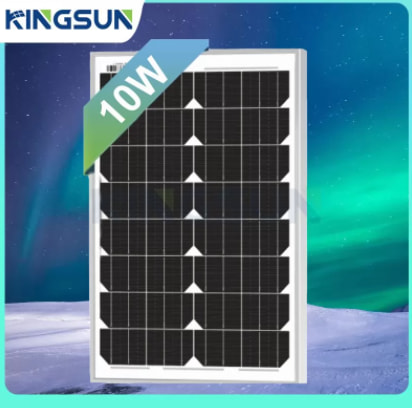

10W (182 cells)
SiNx AR Coating
n+ emmitter
p-Silicon substrate
rear Passivation
SiNx AR Coating
182 & 210mm wafer
A+ Grade Solar Cell as Tier 1
Lossless Scribing
Non-destructive scribing technology, no mechanical damage
Smooth cutting surface without burrs
The risk of cell cracks is low, and micro cracks are reduced by more than 50%
Multiple Busbars
Dense grid lines, uniform force, multi-busbar design
The output power is increased by more than 5W
Encapsulation High-density technology
Minimized space between cells to cells to improve module effciency 0.2-0.3%
Excellent Mechanical Load
Positive mechanical load up to 5400Pa
Negative mechanical load up to 2400Pa
Better frame design for PV Module
Thicker frame prole
Stronger material strength
Larger frame chamber to disperse loading pressure
10W (182 cells)
Max. Power at STC
Pmax
10W
Optimum Operating Voltage
Vmp
18.27V
Optimum Operating Current
Imp
0.55A
Open Circuit Voltage
Voc
21.47V
Short Circuit Current
Isc
0.58A
Dimensions
350x220x15mm
Weight
0.85kg
At KINGSUN, we are proud to introduce our cutting-edge amorphous solar panels, designed to meet the growing demand for flexible, efficient, and sustainable energy solutions. With innovative technology and a commitment to quality, our amorphous solar panels are ideal for a variety of applications, catering to the unique needs of our diverse client base.
