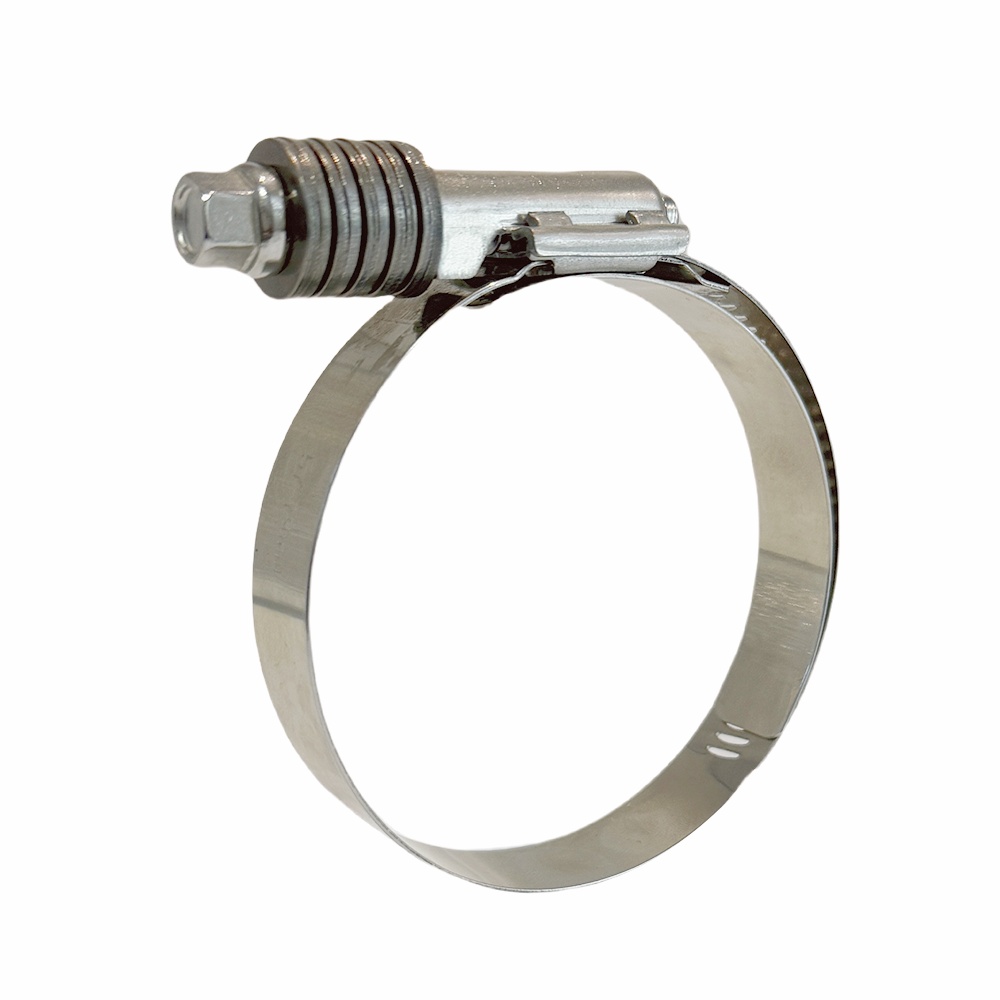

15.8mm Constant Tension Heavy Duty Hose Clamp

The Constant Tension Belleville Washer is built to adjust for changes in pressure and temperature in the hose line. This stops the clamps from getting loose on the hose and prevents leaks. 2 pieces housing design is suitable for higher torque. The liner prevents direct contact of perforations with hose, protect the hose won’t get damaged when install with high torque.

Feature

The constant tension washer is intended to cope with the changes in pressure and temperature

The liner protect the hose from directly contact with perforation

Band Width: 0.62″(15.8mm)

Band Thickness: 0.024″ (0.6mm)

Screw: 5/16″ (8mm) Hex screw head

Recommended Tightening Torque: 11N.m

No burrs, protect soft hose well

Standard: SAE J1508

Application: Widely used in automotive, engine, marine and oil & gas area

Parameters

Size

UD No.

Suggested install toque

inch

26-45

1″-1 3/4″

CT-UDAT2-24

CT-UDAT4-24

11N.m

32-54

1 1/4″-2 1/8″

CT-UDAT2-28

CT-UDAT4-28

11N.m

45-67

1 3/4″-2 5/8″

CT-UDAT2-32

CT-UDAT4-32

11N.m

57-79

2 1/4″-3 1/8″

CT-UDAT2-36

CT-UDAT4-36

11N.m

70-92

2 3/4″-3 5/8″

CT-UDAT2-40

CT-UDAT4-40

11N.m

83-105

3 1/4″-4 1/8″

CT-UDAT2-44

CT-UDAT4-44

11N.m

96-118

3 3/4″-4 5/8″

CT-UDAT2-48

CT-UDAT4-48

11N.m

108-131

4 1/4″-5 1/8″

CT-UDAT2-52

CT-UDAT4-52

11N.m

121-143

4 3/4”-5 5/8”

CT-UDAT2-56

CT-UDAT4-56

11N.m

134-156

5 1/4”-6 1/8”

CT-UDAT2-60

CT-UDAT4-60

11N.m

146-169

5 3/4”-6 5/8”

CT-UDAT2-64

CT-UDAT4-64

11N.m

159-181

6 1/4”-7 1/8”

CT-UDAT2-68

CT-UDAT4-68

11N.m

172-193

6 3/4”-7 5/8”

CT-UDAT2-72

CT-UDAT4-72

11N.m

184-207

7 1/4”-8 1/8”

CT-UDAT2-76

CT-UDAT4-76

11N.m

192-219

7 3/4”-8 5/8”

CT-UDAT2-80

CT-UDAT4-80

11N.m

210-232

8 1/4”-9 1/8”

CT-UDAT2-84

CT-UDAT4-84

11N.m

Sizes can be adjusted as per enquiry.

Material

Band

Housing

Screw

Washer

AISI 201SS/304SS

Zinc plated steel

AISI 410ss

AISI 201SS/304SS

AISI 410ss

We offer competitive wholesale pricing, flexible minimum order quantities (MOQs), and fast global shipping to meet your business needs. With advanced manufacturing technology and rigorous quality control, YOUDE ensures every clamp meets international standards for durability and performance.

Looking for a reliable supplier of constant tension hose clamps? Contact us today for a customized quote and discover why businesses worldwide choose YOUDE for their hose clamp solutions!

For more information, please visit our website.
