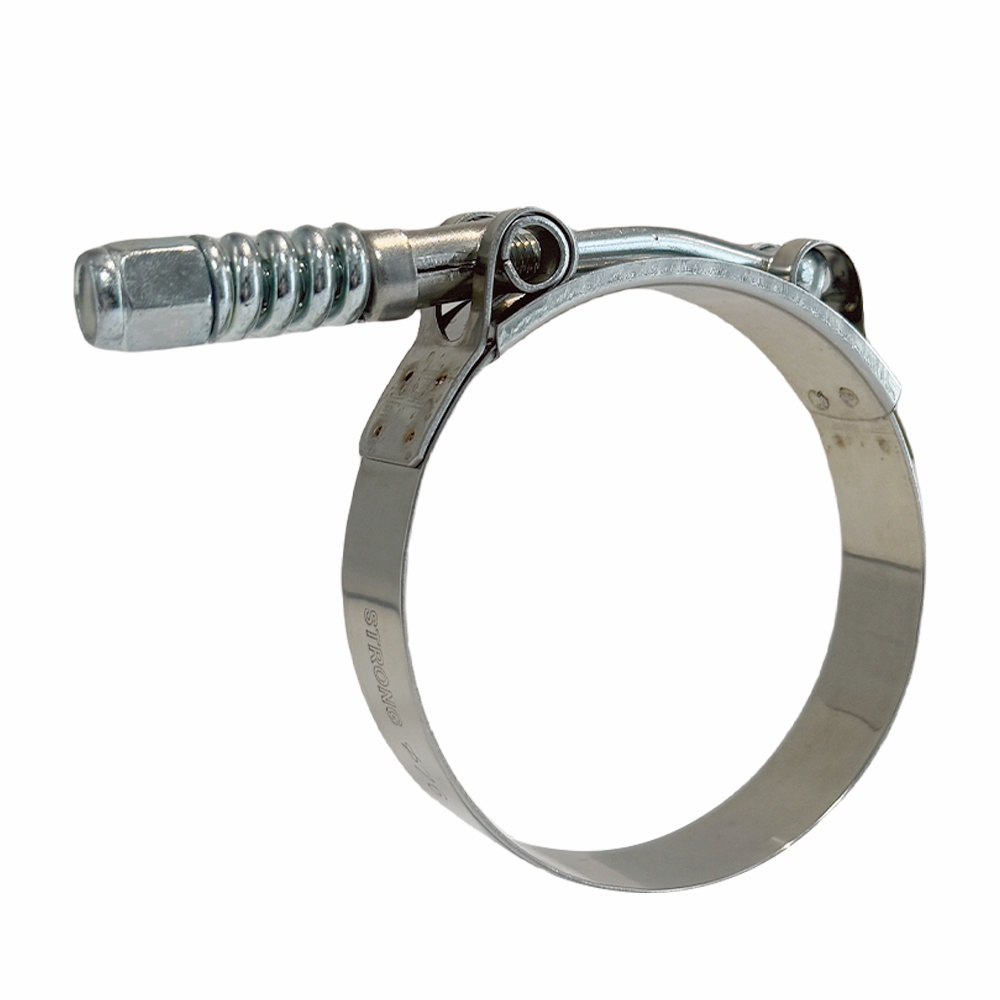

T Bolt Hose Clamp with Spring
T-bolt clamp with spring can provide constant tension performance to compensate for the expansion and contraction when temperatures fluctuate. Provides high strength and a 360°seal. Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, off road equipment, agricultural irrigation and machinery, for air intake and coolant adapter.
Feature
The overall shape of the T-type throat hoop is in the shape of “T”,Built-in spring element
The spring is compressed and the band tightened to firmly clamp the fixed object.
Bandwidth*thickness: 19mm*0.6mm
Size：35-40mm to all
Screw：M6*75mm
Loading Torque：20N.m
Surface：Polishing/Zinc-plated
Material：Stainless steel:200 series and 300 series/galvanized iron
Application：High vibration and large diameter applications common in heavy trucks, industrial machinery, off road equipment, agricultural irrigation and machinery, for air intake and coolant adapter.
Parameters
Size(mm)
W*T(mm)
UD NO.
PCS/Bag
Pcs/CTN
35-40
19 * 0.6
UDTBS-3540
10
300
38-43
19 * 0.6
UDTBS-3843
10
300
41-46
19 * 0.6
UDTBS-4146
10
300
44-51
19 * 0.6
UDTBS-4451
10
300
48-56
19 * 0.6
UDTBS-4856
10
200
51-59
19 * 0.6
UDTBS-5159
10
200
54-62
19 * 0.6
UDTBS-5462
10
200
57-65
19 * 0.6
UDTBS-5765
10
200
60-68
19 * 0.6
UDTBS-6068
10
200
63-71
19 * 0.6
UDTBS-6371
10
200
67-75
19 * 0.6
UDTBS-6775
10
200
70-78
19 * 0.6
UDTBS-7078
10
200
73-81
19 * 0.6
UDTBS-7381
10
200
76-84
19 * 0.6
UDTBS-7684
10
200
79-87
19 * 0.6
UDTBS-7987
10
200
83-91
19 * 0.6
UDTBS-8391
10
200
86-94
19 * 0.6
UDTBS-8694
10
100
89-97
19 * 0.6
UDTBS-8997
10
100
92-100
19 * 0.6
UDTBS-92100
10
100
95-103
19 * 0.6
UDTBS-95103
10
100
102-110
19 * 0.6
UDTBS-102110
10
100
Sizes can be adjusted as per inquiry.
Material
Material
Band
Bridge
Trunnion
Cap
Nut
Bolt
W2
304ss
304ss
Zinc plated
Zinc plated
Zinc plated
Zinc plated
W4
304ss
304ss
304ss
304ss
304ss
304ss
Our T-Bolt Hose Clamps are made from premium stainless steel, offering superior strength, corrosion resistance, and long-lasting durability. They provide even clamping force and a leak-proof connection, making them ideal for high-performance engines, turbo systems, and reinforced hoses.
At YOUDE, we offer custom sizes, OEM branding, and bulk pricing, ensuring the perfect fit for distributors, wholesalers, and industrial buyers. Partner with us for durable, factory-direct T-Bolt Hose Clamps and get a competitive wholesale quote today!
