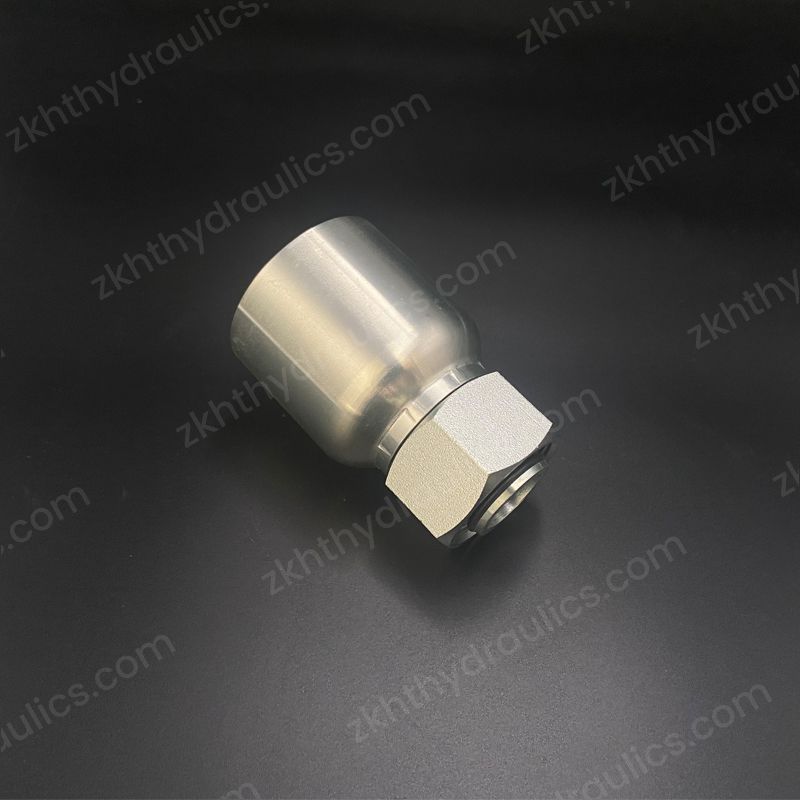

20411RW One Piece Fittings
Product Introduction
HT Hydraulics Since 1987 Hydraulic Hose Fitting -One Piece Fittings
Metric Female 24° Cone O-ring L.T.ISO 12151-2-DIN3865
H20411-TRW
HT Hydraulics Since 1987 Hydraulic Hose Fitting -One Piece Fittings
Metric Female 24° Cone O-ring L.T.ISO 12151-2-DIN3865
Part No.
Thread
HOSE BORE
TUBE O.D
DIMENSIONS
DN
DASH
B
W
H20411-12-04TRW
M12X1.5
6
04
6
22
17
H20411-14-04TRW
M14X1.5
6
04
8
23.5
17
H20411-16-04TRW
M16X1.5
6
04
10
20.5
19
H20411-16-05TRW
M16X1.5
8
05
10
25.5
19
H20411-18-05TRW
M18X1.5
8
05
12
23.5
22
H20411-18-06TRW
M18X1.5
10
06
12
26.5
22
H20411-22-08TRW
M22X1.5
13
08
15
28.5
27
H20411-26-08TRW
M26X1.5
13
08
18
30
32
H20411-26-10TRW
M26X1.5
16
10
18
32
32
H20411-30-10TRW
M30X2
16
10
22
32.5
36
H20411-30-12TRW
M30X2
19
12
22
33.5
36
H20411-36-12TRW
M36X2
19
12
28
35
41
H20411-36-16TRW
M36X2
25
16
28
36
41
H20411-45-16TRW
M45X2
25
16
35
34
50
H20411-45-20TRW
M45X2
32
20
35
35
50
H20411-52-20TRW
M52X2
32
20
42
38
60
H20411-52-24TRW
M52X2
38
20
42
38
60
Our One-Piece Hose Fittings&Unified Hose Fittings Are Distinguished By The Following Features:
High Precision Manufacturing: Utilizing Advanced CNC Machines And Hot Forging Techniques To Ensure Accurate Dimensions And Superior Strength.
Durable Materials: Made From High-Quality Stainless Steel And Other Robust Materials To Withstand Extreme Pressures And Harsh Environments.
Leak-Free Design: Engineered To Provide A Secure And Leak-Free Connection, Enhancing The Safety And Efficiency Of Hydraulic Systems.
Wide Range Of Sizes: Available In A Variety Of Sizes And Configurations To Meet The Specific Needs Of Different Hydraulic Applications.
