Air Cooled Screw Chiller
Air Cooled Screw Chiller,Semi closed Air Cooled Screw Chiller
Description:

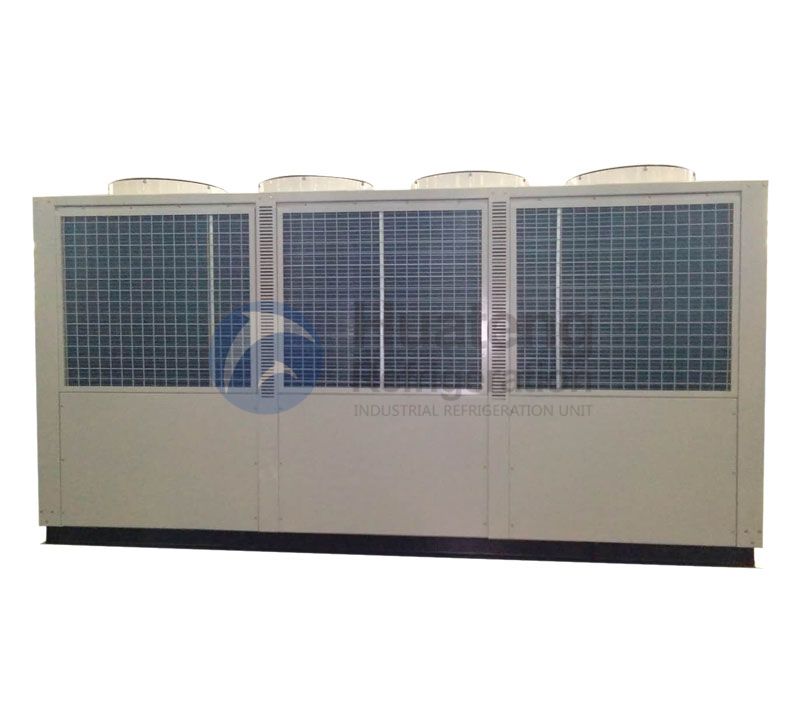

The series air cooled screw type chiller cooling capacity from 85KW to 1550KW. This series units integrates the characteristics of many other products, using imported semi-closed screw compressors,supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. The user just need simply connect the pipeline of the water system and the required power supply,then can put into operation.
This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum. The manufacturing technology of this product is mature and stable and reliable.
Jiangsu Huazhao Refrigeration Equipment CO., Ltd. is a manufacturing enterprise focus on high quality industrial refrigeration equipment research and development, production and sales.
Our company various industrial chiller with competitive price include: Air cooled chiller; Water cooled chiller; Low temperature glycol/brine water cooled chiller; Heat pump hot water chiller; Maglev inverter centrifugal water chiller; Oxidation dedicated water cooled chiller.
Features:
1. Scroll compressor for modle 12-180kw, semi-hermetic screw compressor for modle 130-2300kw. Each compressor is equipped with a crankcase heater and a thermal overload cut-out; the screw compressor is also complete with a built-in electronic protection with temperature sensor located directly in the motor winding and on the discharge line.
2. External rotor type axial fans, equipped with three phase direct drive motors, low noise 8 poles, protection level IP54, provided with a protective outlet grille.
Evaporator built with high efficiency shell and tube type heat exchanger, factory insulated with flexible close cell material.
3. Condenser built with seamless copper tubes mechanically expanded into blue hydrophilic aluminum fins.
4. Refrigerant circuit complete with charge valves, filter drier, sight glass, gas-liquid separator, thermostatic expansion valve, high & low pressure switch. The heat pump unit is completed also with 4-way valve, liquid receiver and one way valve.
5. Hydraulic circuit built with galvanized pipe, complete with water discharge connection for shell and tube heat exchanger and flange type hydraulic connectors.
6. Electric panel consist of: Compressor contactor, fan motor contactor, compressor isolating switch, fan protection breaker, phase sequence relay and microprocessor with function display.
7. Automatic operation dramatically reducing maintenance cost thanks to reliable microprocessor system.
Safety system:
1 Compressor reverse protective
2 Freeze protector protective
3 Refrigerant safety valve
4 Buzzer
5 High-pressure gauge and Low-pressure gauge
6 Power phase failure protector
7 Coil over-heat protector
8 Temperature auto-switch
9 Refrigerant shortage protective
Model
HTK-130F
HTK-170F
HTK-190F
HTK-230F
HTK-250F
HTK-310F
HTK-350F
HTK-450F
Cooling
KW
130
168
187
226
251
314
354
450
Capacity
Kcal/Hr
111800
144480
164700
194360
215860
270040
304440
387000
RT
36.96
47.77
53.17
64.26
71.37
89.28
100.65
127.95
Power
50HZ
3P-380V-50HZ
Input power(KW)
45.5
58.7
64.7
77.9
86.8
107.5
119.8
150
EER
COP
2.86
2.86
2.89
2.9
2.89
2.92
2.95
3
Freezing medium
R22
control mode
Thermal expansion valve
Comprosser
Mode
Semi-closed double screw
Working style
Y-Δ/Δ-Δ
Capacity
0-25%-50%-75%-100%
Condensor
Mode
Finned type
Cooling air tempreture
In 35℃/Out 45℃
Wind flow (m³/h)
60000
60000
90000
90000
120000
120000
180000
180000
Fan quantity
4
4
6
6
8
8
12
12
Motor power（KW)
0.85×4
0.85×4
0.85×6
0.85×6
0.85×8
0.85×8
0.85×12
0.85×12
Evaporater
mode
Efficient internal thread shell and tube type
Freeze water tempreture
In 12℃/Out 7℃
Freeze water flow (m³/h)
22.4
28.9
32.2
38.9
43.2
54
60.9
77.4
Pressure loss (Kpa)
52
52
55
58
58
58
58
61
waterpipe
DN80
DN80
DN80
DN80
DN100
DN100
DN100
DN100
Safeguard
High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection;
high pressure safety valve protection; oil pressure protection; exhaust over heat protection
Units Weight
Kg
1700
1800
2200
2300
2800
2900
3500
3600
Size
L(mm)
2080
2080
3060
4040
4040
6000
6000
6000
W(mm)
2200
2200
2200
2200
2200
2200
2200
2200
H(mm)
2220
2220
2220
2260
2260
2260
2260
2260
Noise(dB)
72
72
72
73
74
74
75
75
Note:
1. Above cooling capacity parameters are all based on the conditions of dry bulb temperature 35℃, water temperature (in) 12℃，water temperature(out)7℃
2. We can make order according to your requirement.
3. Please indicate the hot recycled if needed, as the recycle rate can be up to 25%-30% of the unit refrigerating capacity, the temperature can be up to 55℃.
