Module Air Cooled Heat Pump
Module Air Cooled Heat Pump,Module Air Cooled Heat Pump for sale,China Multi-Functional Air Cooled Heat Pump
Description:

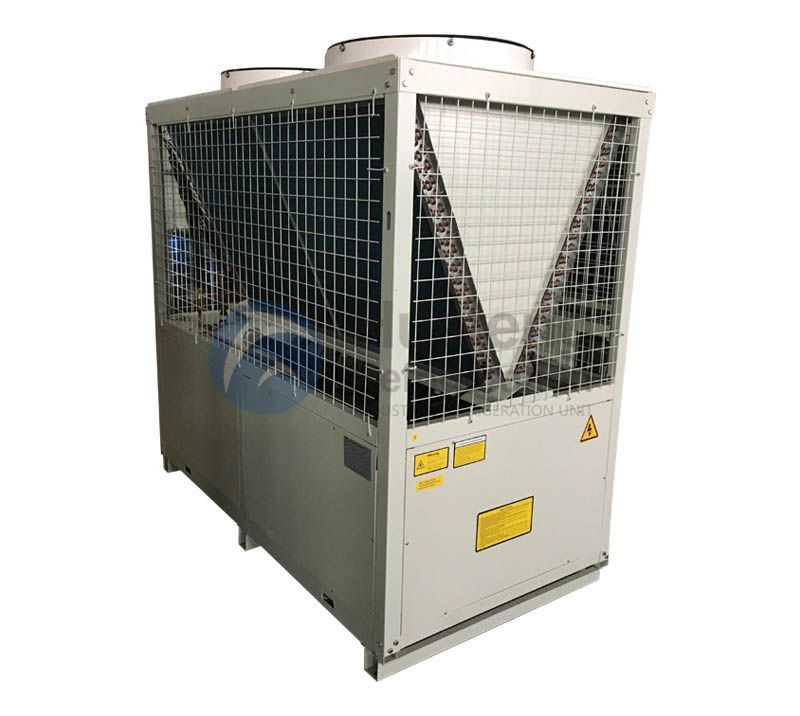

The series modular air cooled chiller cooling capacity from 7KW to 120KW. This series units integrates the characteristics of many other products, using imported full-closed scroll compressors,supplemented by high-efficiency heat exchangers and adopts microcomputer controllers, which makes the unit compact, reasonable layout, convenient to use and maintain. The user just need simply connect the pipeline of the water system and the required power supply,then can put into operation.
This series of chillers is widely used: it can provide process chilled water for industrial and mining enterprises such as textile, chemical and petroleum. The manufacturing technology of this product is mature and stable and reliable.
Jiangsu Huazhao Refrigeration Equipment CO., Ltd. is a manufacturing enterprise focus on high quality industrial refrigeration equipment research and development, production and sales.
Our company various industrial chiller with competitive price include: Air cooled chiller; Water cooled chiller; Low temperature glycol/brine water cooled chiller; Heat pump hot water chiller; Maglev inverter centrifugal water chiller; Oxidation dedicated water cooled chiller.
Features:
1. Employing original SCROLL compressor, compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life
2. Employing all-new imported high class component
3. Employing two sets of compressor which can be used jointly or independent
4. Switch control, easy operation and maintenance
5. The weld of brass pipe is non-oxidization
6.Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003,operation safe
Safety system:
1 Compressor reverse protective
2 Freeze protector protective
3 Refrigerant safety valve
4 Buzzer
5 High-pressure gauge and Low-pressure gauge
6 Power phase failure protector
7 Coil over-heat protector
8 Temperature auto-switch
9 Refrigerant shortage protectiv
Air cooled industrial chiller（environment-friendly）
Model
HTB-M9F
HTB-M14F
HTB-M18F
HTB-M21F
HTB-M27F
HTB-M27F
HTB-M36F
HTB-M54F
HTB-M72F
Cooling Capacity
KW
8.8
13.5
18
21
27
27
36
54
72
Kcal/Hr
7568
11610
15480
18060
23220
23220
30960
46440
61920
RT
2.5
3.84
5.12
5.97
7.68
7.68
10.24
15.35
20.47
Power
50HZ
3P-380V-50HZ
Comprosser
Mode
Full closed high efficiency flexible scroll compressor
Input power(KW)
2.7
4.29
5.6
6.3
8.3
8.58
11.2
16.8
22.4
Rated load current(A)
5.9
10
12.1
13.8
19.1
20
24.2
36.3
48.4
Wiring specification
4
6
6
6
10
10
16
25
35
Add unloading way
0,100%
0,50%,100%
0,33%,66%,100%
0,25%,50%,75%,100%
Condensor
Cooling fan(KW)
0.18×2
0.24×2
0.3×2
0.6×2
0.6×2
0.78×2
0.78×2
0.78×3
0.85×3
Structure form
Efficient internal thread copper pipe hydrophilic aluminium fin+Auxiliary water spray falling film technology
Evaporater
Freeze water temp（℃）
Inlet temp 12℃/outlet temp 7℃
Freeze water flow（m³/h)
1.51
2.32
3.1
3.61
4.64
4.64
6.19
9.29
12.38
Waterpipe diameter(DN)
32
32
32
40
40
40
40
50
50
Safeguard
Overload protection,overpressure,inverse phase,open phase protection,exhaust temperature protection,abnormal refrigerant protection,water pump chain protection, etc.
Size
L(mm)
1200
1250
1400
1400
1700
1700
1700
2600
2800
W(mm)
650
900
900
900
1000
1000
1000
1100
1200
H(mm)
1250
1720
1750
1750
1900
1900
1920
1950
1980
Units Weight
Kg
220
280
300
320
350
420
540
610
690
Note:
1、Above parameters refrigerating capacity based on the condensation temperature 40℃, evaporation temperature 2℃。
2、Above is my company’s industrial water-cooled water chiller parameters, evaporator is shell and tube type, if there is a demand for the built-in bank、non-standard products of water pump, can be designed and manufactured according to the concrete situation.
3、In order to ensure technology constantly updated, the above parameters are subject to change without prior notice
4、The specific parameters for non-standard products, welcome consulting our technical department.
