ASTM B111/ ASME SB111 COPPER ALLOY STEEL TUBE

ASME SB111 C70600 Tube Copper-nickel alloy that resists seawater corrosion and has high antifouling properties against marine microorganisms. You can find ASTM B111 tubes using ASME SB111 alloy are widely used in shipbuilding repair, petrochemical, natural gas, and other marine engineering and related industries. ASME SB111 materials, like SB111 C7060, have good corrosion resistance, especially in seawater.

ASTM B111/ ASME SB111 TUBES PROVIDED BY YUHONG

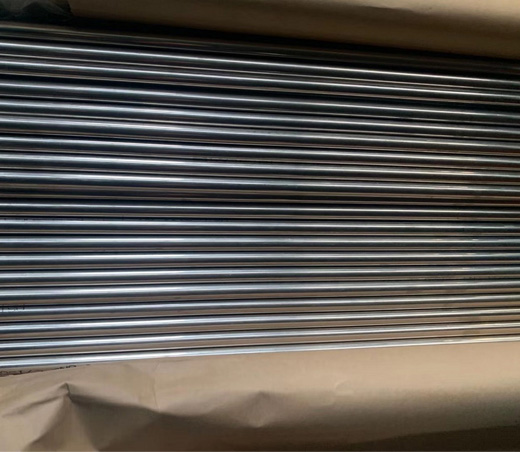

ASTM B111/ ASME SB111 Copper Alloy Steel Tube

YUHONG GROUP provides the best ASTM B111/ ASME SB111 tubes including straight tube, U tube for heat exchanger, boiler, and superheater.

C70600 Copper Alloy Steel Tube

C71500 Copper Alloy Steel Tube

C44300 Copper Alloy Steel Tube

C12200 Copper SMLS Tube

68700 Copper Alloy Steel Tube

ASTM B111 TUBES FEATURES

The characteristics of ASTM B111/ ASME SB111 copper alloys are mainly good electrical and thermal conductivity and have a certain strength (higher than aluminum alloys and magnesium alloys). You can find ASTM B111/ ASME SB111 tubes widely used in electronic power and other fields with high electrical conductivity requirements, such as various electrodes, electrical contacts, and high-strength wires;

The ASTM B111/ ASME SB111 tubes are also used in fields with high heat dissipation requirements such as heat dissipation components or devices, such as molds, thermonuclear reactor radiators, air conditioning condenser pipes, etc.

ASTM B111/ ASME SB111 TUBES SPECIFICATIONS

ASTM B111 Specification

ASTM B111/ASME SB111

ASTM B111 Copper&Copper Alloy Tube Type

Condensers, Evaporators, Heat Exchangers

ASTM B111 Tube Size in Outside Diameter

Up to 3 1⁄8 in. [80 mm] inclusive

ASTM B111 Tubing Length

Up to 6 mater,custom cut lengths

ASTM B111 Heat Exchanger Tube Thickness

Up to 0.120 inch[3 mm] inclusive

ASTM B111/ ASME SB111 TUBES CHEMICAL COMPOSITION

UNS No.

ASTM B111 Copper&Copper Alloy Tube (%)

Ni Incl Co

Lead Max

Other Named Elements

C44300

70.0-73.0

…

0.9-1.2

…

0.07

0.06 max

reminder

…

0.02-0.06

…

C68700

76.0-79.0

4.8-6.2

…

1.8-2.5

0.07

0.06 max

reminder

…

0.02-0.06

…

C70600

reminder

9.0-11.0

…

0.05

1.0-1.8

1.0 max

…

C71500

reminder

29.0-33.0

…

0.05

0.4-1.0

1.0 max

…

..,

C71640

reminder

29.0-33.0

…

0.05

1.7-2.3

1.0 max

1.5-2.5

…

C.06 max S.03

ASTM B111/ ASME SB111 TUBES TENSILE REQUIREMENT

UNS No.

Temper Designation

Tensile Strength

Yield Strengh

Elongation

Code

Name

min MPa

in 50mm min%

C44300

O61

annealed

…

C68700

O61

annealed

…

C70600

O61

annealed

…

C70600

H55

light-drawn

…

C71500

O61

annealed

…

C71640

O61

annealed

C71640

HR50

light-drawn

…

ASTM B111 EQUIVALENT STANDARD

Product Description

ASTM B111

JIS H3300

DIN

Admiralty Brass Tube/Pipe

C44300

C4430T

DIN17660 CuZn28SnI2.0470

Al-Brass Tube/Pipe

C67800

C6870T

DIN 17660 CuZn20Al22.0460

Copper Nickel 90/10 Tube/Pipe

C70600

C7060T

DIN 17664 CuNi10FeMn2.0872

Copper Nickel 70/30 Tube/Pipe

C71500

C7150T

DIN17664 CuNi30MnFe2.0882

ASTM B111 ASME SB 111 TUBES TYPICAL APPLICATIONS

ASTM B111 and ASME SB 111 are specifications that define the requirements for seamless copper and copper alloy tubes used in various applications. These ASTM b111 tubes are typically utilized in industries such as plumbing, HVAC (Heating, Ventilation, and Air Conditioning), refrigeration, and heat exchangers. Here are some typical applications of ASTM B111/ASME SB 111 tubes:

Plumbing Systems: Copper tubes specified under ASTM B111/ASME SB 111 are commonly used in plumbing systems for transporting water and other fluids. They are resistant to corrosion, have excellent heat transfer properties, and are relatively easy to install.

HVAC and Refrigeration: Copper asme sb111 tubes are widely employed in heating, ventilation, air conditioning, and refrigeration systems due to their excellent thermal conductivity. These tubes efficiently carry refrigerants, allowing for effective heat exchange and temperature regulation.

Heat Exchangers: ASTM B111/ASME SB 111 tubes find extensive use in heat exchangers where the transfer of heat between two fluids is required. Their high thermal conductivity ensures efficient heat transfer, making heat exchanger pipes suitable for applications in power plants, chemical processing plants, and industrial machinery.

Oil and Gas Industry: oil field tubing specified under these standards is used in the oil and gas industry for applications such as oil coolers and hydraulic lines. Their corrosion resistance and ability to withstand high pressures and temperatures make them suitable for these demanding environments.

Shipbuilding and Marine Applications: Copper asme sb111 tubes are employed in shipbuilding and marine applications due to their resistance to corrosion in seawater. They are used for various purposes, including piping systems, heat exchangers, and condensers.

Electrical Applications: Copper tubes specified under ASTM B111/ASME SB 111 are also used in electrical applications where their excellent electrical conductivity is required. They are used in busbars, conductors, and other components of electrical systems.

It is important to note that the specific application of ASTM B111/ASME SB 111 tubes may vary depending on the alloy composition and specific requirements of the industry or application. Copper alloy tube manufacturers and engineers typically select the appropriate copper alloy and tube dimensions based on the intended use and the operating conditions of the system.
