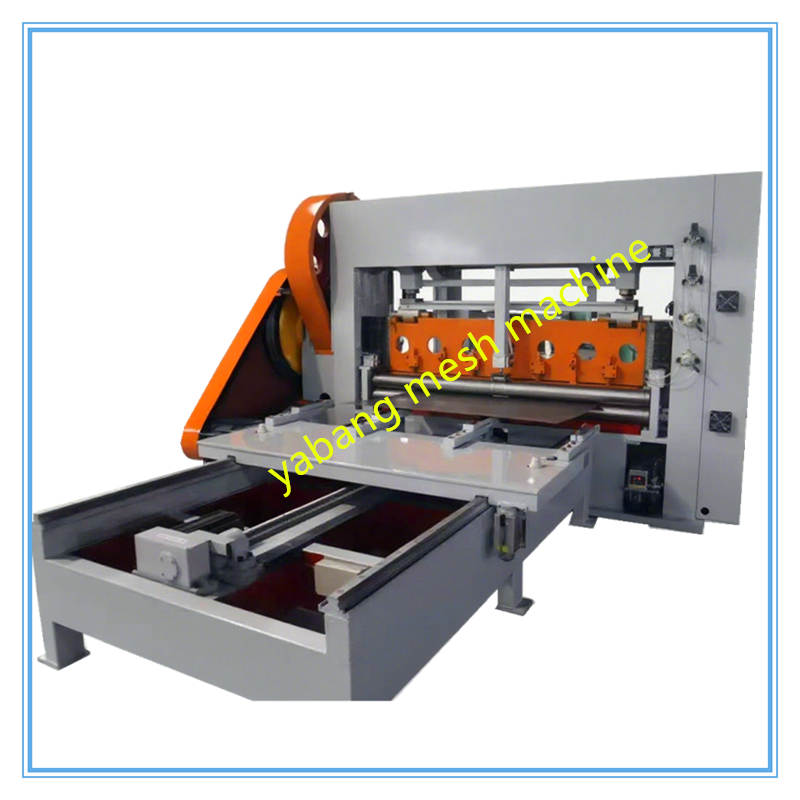

Automatic Expanded Metal Machine
Automatic Expanded metal mesh machine is a special equipment used to produce expanded metal mesh (also known as expanded mesh, diamond mesh). Its working principle is to process metal plates (such as low carbon steel plates, stainless steel plates, aluminum plates, etc.) into a mesh structure with diamond or other hole shapes through mechanical stamping and stretching.
Parameters:
Type
JQ25-6.3
JQ25-16
JQ25-25
JQ25-40
JQ25-63
JQ25-100
Material thickness(mm)
Max1.0
Max1.0
Max1.5
Max2.5
Max4.0
Max6.0
Net width(mm)
Max600
Max1000
Max1250
Max1500
Max2000
Max2500
Punching times/min
180
160
160
80
67
55
Feeding distance(mm)
0-10
0-10
0-10
0-10
0-20
0-20
Length of mesh(mm)
Max20
Max25
Max30
Max80
Max200
Max200
Motor power(kw)
2.2
3.0
4.0
11.0
11.0
15.0
Weigth(T)
0.95
2
3
6
10
12
The advantages of expanded metal machine designed and produced by our factory includes:This machine adopts the mature technologies of the past as well as new technologies such as:full-automatic lubricating, NC stepping motor feeding, etc, ;it has good effect;controllability, stability and safety has been greatly increased;it has reasonable structure, elegant appearance, it is environmental production and energy saving, it is suitable for the material as low carbon steel sheet, aluminium sheet, stainless steel sheet, aluminium magnesium alloy sheet, copper sheet, nickel sheet.
