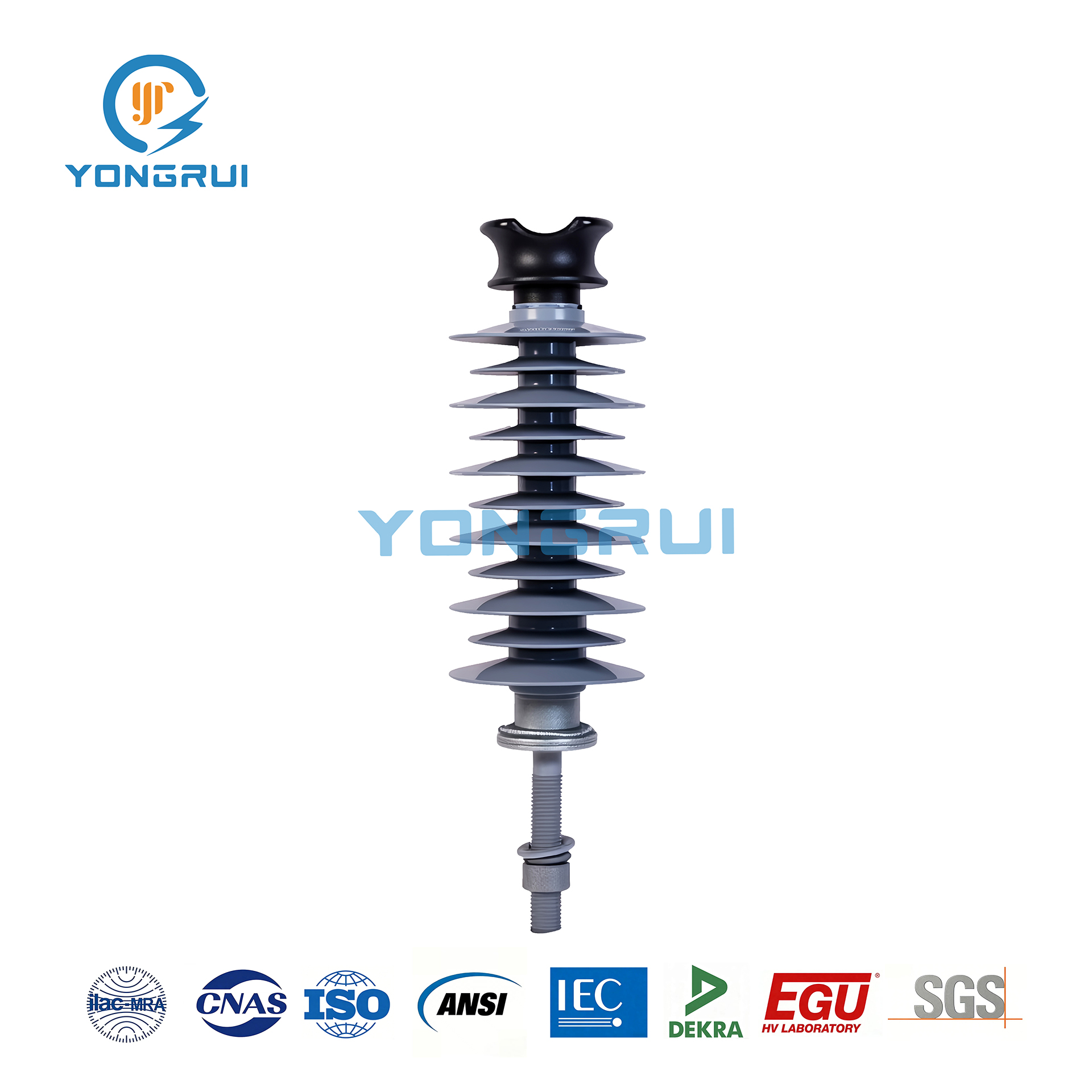

Composite Pin Insulator is a type of high‑voltage insulator widely used in electrical transmission and distribution systems. It combines the reliability of traditional insulators with the advanced performance benefits of modern composite materials, delivering superior mechanical strength and electrical insulation in a lightweight design.
What Is a Composite Pin Insulator?
Composite pin insulators are composed of a fiberglass‑reinforced plastic (FRP) core, a durable silicone rubber housing, and metal end fittings. This construction ensures excellent electrical insulation and mechanical performance while offering the benefits of long‑term outdoor reliability and resistance to contamination and weathering.
Design and Construction
FRP Core: Provides high tensile and bending strength to support conductor loads and resist mechanical stresses.
Silicone Rubber Housing: Offers excellent hydrophobic properties that repel moisture, resist pollution accumulation, and reduce the risk of surface leakage and flashovers.
Metal Fittings: Robust metallic hardware (pin at bottom and groove‑style head at top) securely connects the insulator to cross‑arms or poles and retains conductors firmly.
