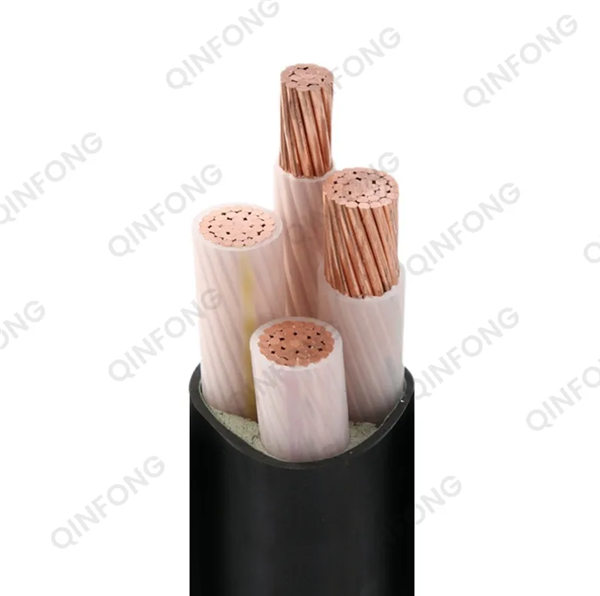

Copper Conductor Power Cable
Voltage: 0.6/1KV
Model: YJV
The advantages of copper core power cables are mainly reflected in their physical and electrical properties, including low resistivity, high strength, good ductility, strong fatigue resistance, good stability, large current carrying capacity, low voltage loss, low energy consumption, low heating temperature, oxidation resistance and corrosion resistance.
Conductor: Oxygen-free Copper
Insulation material: Crosslinked Polyethylene
Insulation color: Natural Color or to be customized
Filling material: Non-hygroscopic Material
Inner sheath: PVC
Outer sheath: PVC/PE
Sheath color: Black
Power transmission
Electrical systems in buildings
Industrial control and automation
Transportation
3+1 Core Copper Conductor XLPE Insulated PVC Sheathed Power Cable（0.6/1KV）
No. of Cores and Nominal Cross Section
Thickness of Insulation
Thickness of Sheath
Approx. Overall Diameter
Approx. Weight
Max. DC Resistance of Conductor (20℃)
Current Carrying Capacity（Ω/km）
(mm2)
(mm)
(mm)
(mm)
(kg/km)
（Ω/km）
In Air (A)
In Ground (A)
3×2.5+1×1.5
0.7/0.7
1.8
12.3
200
7.41/12.1
28
39
3×4+1×2.5
0.7/0.7
1.8
13.4
260
4.61/7.41
37
51
3×6+1×4
0.7/0.7
1.8
14.6
350
3.08/4.61
47
64
3×10+1×6
0.7/0.7
1.8
16.9
480
1.83/3.08
65
86
3×16+1×10
0.7/0.7
1.8
19.4
760
1.15/1.83
84
110
3×25+1×16
0.9/0.7
1.8
22.8
1040
0.727/1.15
110
140
3×35+1×16
0.9/0.7
1.8
25.1
1420
0.524/1.15
135
170
3×50+1×25
1.0/0.9
1.8
28.2
1830
0.387/0.727
170
205
As a leading China power cable manufacturer, Qinfong specializes in providing high-quality power cables designed for a wide range of applications. Our products are not only environmentally friendly but also customizable to meet your specific requirements. Whether you’re seeking Aluminium Power Cable, Copper Power Cable, or other electrical supply solutions, we are committed to offering products that deliver top-tier performance and reliability.
